MROSupply Has Hundreds Of Brands, Millions Of Products, Including
Image for Illustration purposes only. Actual product may vary
08601/4 057416 118° Extra Length Drill ANSI 1/4 inch
MODEL 08601/4
$26.60 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Application Material
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
ANSI
Coating
Bright
Connection (shank) description
Cylindrical shank
Cutting diameter - fractional inch (DC)
1/4"""
Cutting diameter - inch (DC)
0.25
Cutting diameter - millimeter (DC)
6.35
Drill Length
XL
Hand (Cutting direction)
Right

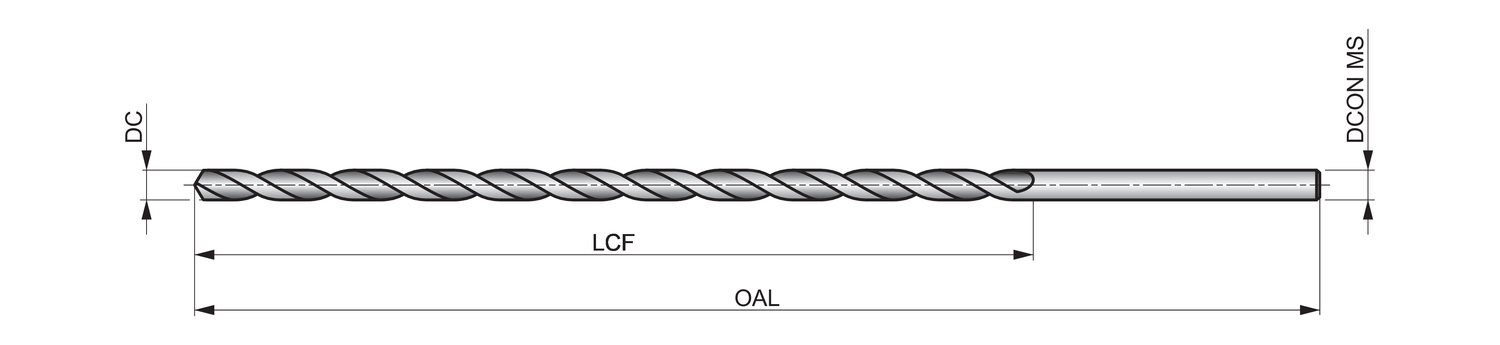

Length chip flute - fractional inch (LCF)
6"
Material
HSS
Overall length - fractional inch (OAL)
8
Overall length - millimeter (OAL)
203.2
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Original surface
Usable length (ULDR)
12
The 0860 drill bit is manufactured from premium High Speed Steel and can be used for drilling a wide range of materials including steels, aluminum and stainless steel.
The strong 118 degree conventional point is easy to regrind, whilst the extra length series drill bit (8” overall length) is recommended for drilling deep holes and applications where increased reach is needed. They have a bright finish which prevents workpiece material from sticking to the cutting edges so you get a clean and accurate result.
0860 drill bits come in a range of fractional sizes from 1/8” to 1/2”.
