SPL-903/4 087928 90° Taper Length Spotting Drill Long 3/4 inch
MODEL SPL-903/4
$175.45 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 90°
Basic Standard
Precision
Coating
Bright

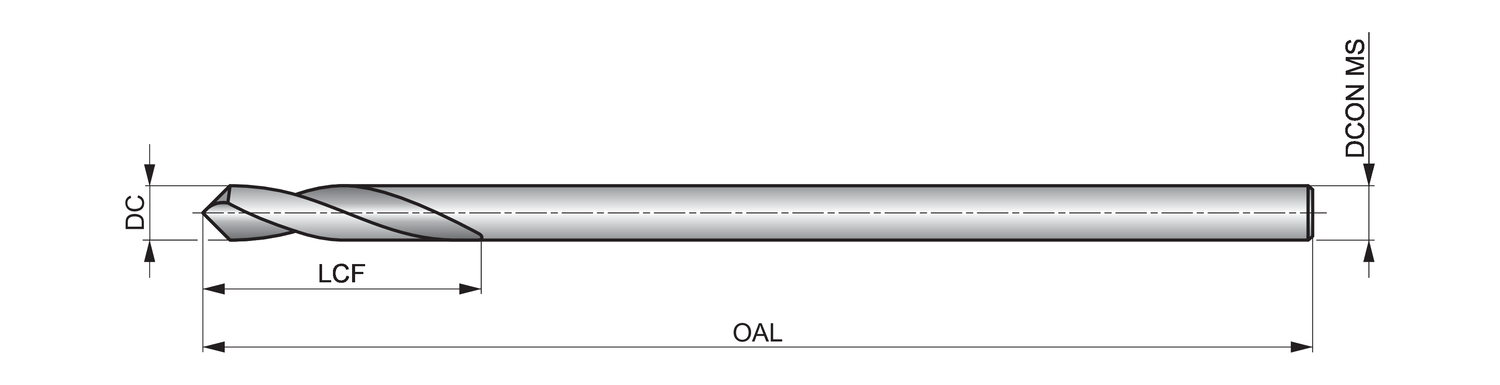

Cutting diameter - fractional inch (DC)
3/4
Cutting diameter - millimeter (DC)
19.05
Cutting Diameter Inch Decimal
0.75
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
1.7/8
Length chip flute - inch (LCF)
1.875
Material
HSS
Overall length - fractional inch (OAL)
10"
Overall length - inch (OAL)
10
Overall length - millimeter (OAL)
254
Point Angle (SIG)
90
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
SPL-90 High Speed Steel drills have a 90 degree point designed for spotting holes including 90 degree chamfer, with an accurate point angle for a chamfer to accommodate standard screws.
The bright finish prevents workpiece material from sticking to the cutting surfaces of the tool resulting in more accurate holes, whilst the long length improves centering and accuracy when you need increased reach.
SPL-90 spotting drills are suitable for drilling most common materials including stainless steel, aluminum, cast iron and steel.
