SPR-901 087917 90° Spotting Drill Jobber 1 inch
MODEL SPR-901
$164.96 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 90°
Basic Standard
Precision
Coating
Bright

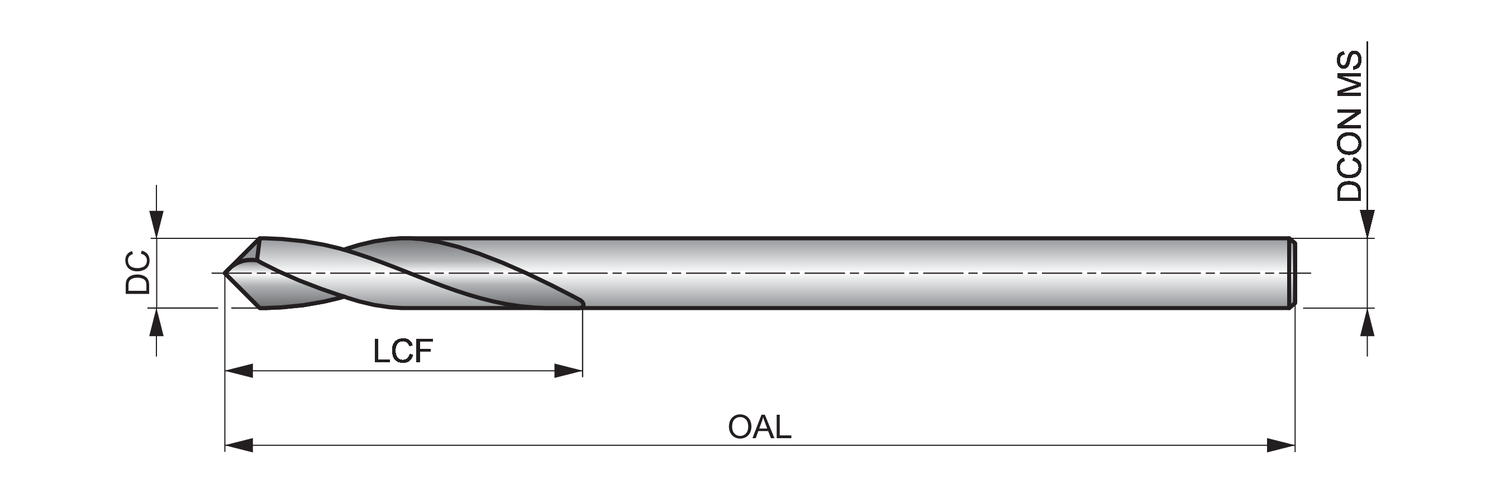

Cutting diameter - fractional inch (DC)
1"
Cutting diameter - millimeter (DC)
25.4
Cutting Diameter Inch Decimal
1
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
2.1/4
Length chip flute - inch (LCF)
2.25
Material
HSS
Overall length - fractional inch (OAL)
8"
Overall length - inch (OAL)
8
Overall length - millimeter (OAL)
203.2
Point Angle (SIG)
90
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
SPR-90 High Speed Steel spotting drills have an accurate point angle, providing chamfers to accommodate standard screws.
The point angle is a 90 degree conventional point for spotting holes including 90 degree chamfers.
The bright finish prevents workpiece material from sticking to the cutting surfaces of the drill for even greater accuracy.
SPR-90 HSS spotting drills are very versatile and are suitable for drilling most common materials, including aluminum, steel, stainless steel and cast iron.
