Image for Illustration purposes only. Actual product may vary
DS901/8 003332 90° Spotting Drill 1/8 inch
MODEL DS901/8
$23.04 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Spotting 90°
Basic Standard
Precision
Coating
Bright

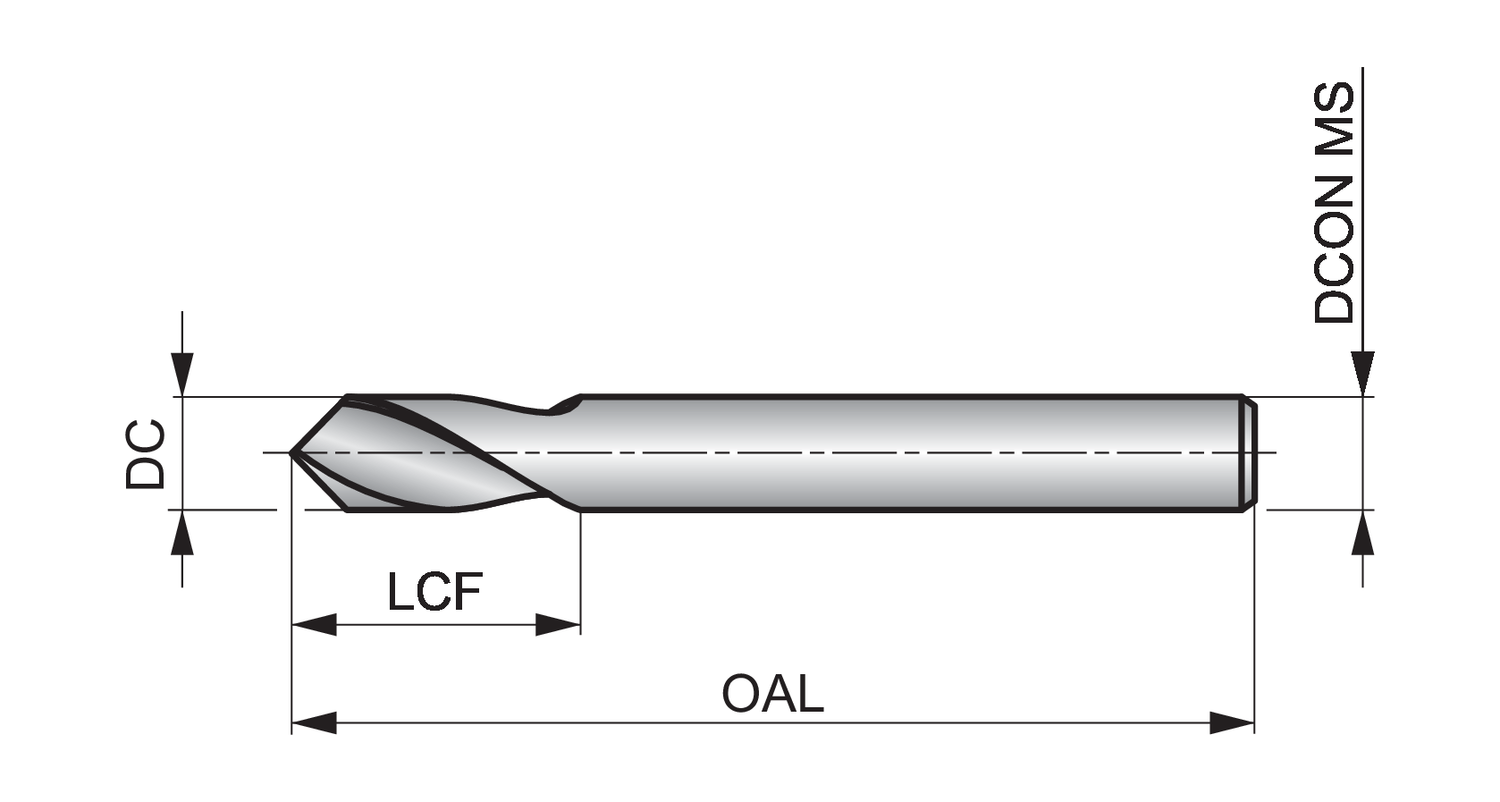

Cutting diameter - fractional inch (DC)
1/8
Cutting diameter - millimeter (DC)
3.18
Cutting Diameter Inch Decimal
0.125
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
3/8
Length chip flute - inch (LCF)
0.375
Material
Carbide
Overall length - fractional inch (OAL)
2"
Overall length - inch (OAL)
2
Overall length - millimeter (OAL)
50.8
Point Angle (SIG)
90
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
DS-90 spotting drills have a precise point angle for accurate chamfering to take standard screws.
The premium carbide used in manufacture means the tools are suitable for drilling many materials, including steels, stainless steel and aluminum, whilst the 90 degree point reduces the push force required and helps with self-centering.
The bright finish prevents workpiece material from sticking to the cutting surfaces of the tool so you can be sure of a clean, accurate result.
DS-90 solid carbide spotting drills are available in six different fractional sizes from 1/8” to 1/2" to satisfy most spotting requirements.
