SB-90DC 7466240 Rotary Burr - Cylinder with endcut 1 x 1/4 x 1 x 2.3/4
MODEL SB-90DC
$102.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBurr Shape
B - Cylinder Shape with endcut
Burr Type Code (BTC)
Double Cut Geometry
BurrEndShot_DICT_SEL
End Cut Burr End
Coating
Bright
Connection diameter - fractional inch (DCON MS)
1/4
Connection diameter - inch (DCON MS)
0.25
Connection diameter - millimeter (DCON MS)
6.35

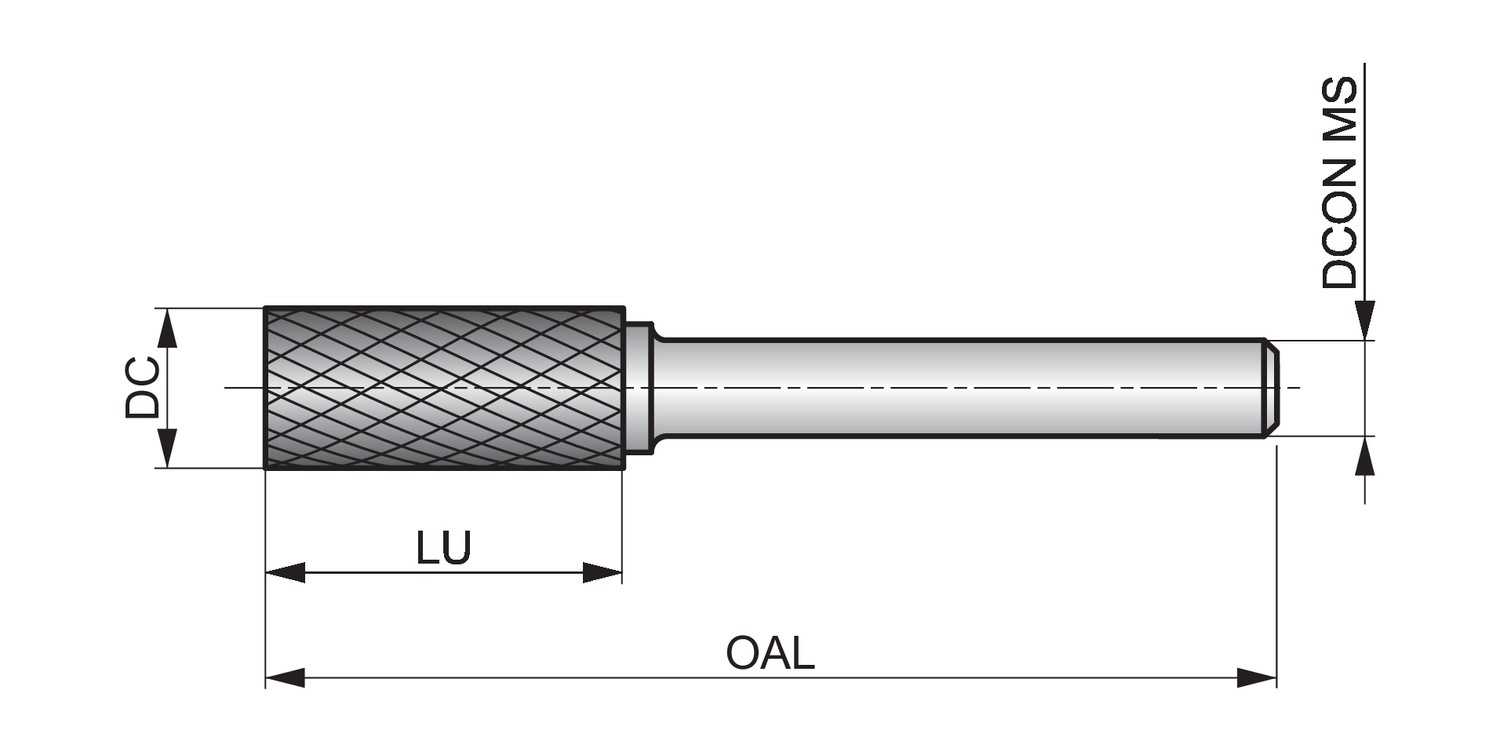

Cutting diameter - fractional inch (DC)
1
Cutting diameter - inch (DC)
1
Cutting diameter - millimeter (DC)
25.4
Depth of cut maximum - fractional inch (APMX)
1
Material
HM
Overall length - fractional inch (OAL)
2.3/4
Overall length - inch (OAL)
2.75
Overall length - millimeter (OAL)
69.85
Shank
Cylindrical shank
Usable Length - fractional inch (LU)
1
SB-DC rotary carbide burrs have a DC geometry to break chips more efficiently and improve control when used by hand by the maintenance and repair professional.
The burrs are designed for de-burring into 90 degree corners, being Shape B – cylinder with endcut.
With a bright finish to ensure good results by preventing workpiece material from sticking to the cutting surfaces of the tool, SB-DC rotary burrs are manufactured from premium carbide material to extend tool life and greatly improve performance at high speeds.
The toughened and hardened steel shank provides extra strength and rigidity to reduce vibrations and further improve tool life
