SC-02DC-L 7466247 Rotary Burr - Ball Nosed Cylinder 1/8 x 1/8 x 9/16 x 3
MODEL SC-02DC-L
$14.40 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBurr Shape
C - Ball Nosed Cylinder Shape
Burr Type Code (BTC)
Double Cut Geometry
Coating
Bright

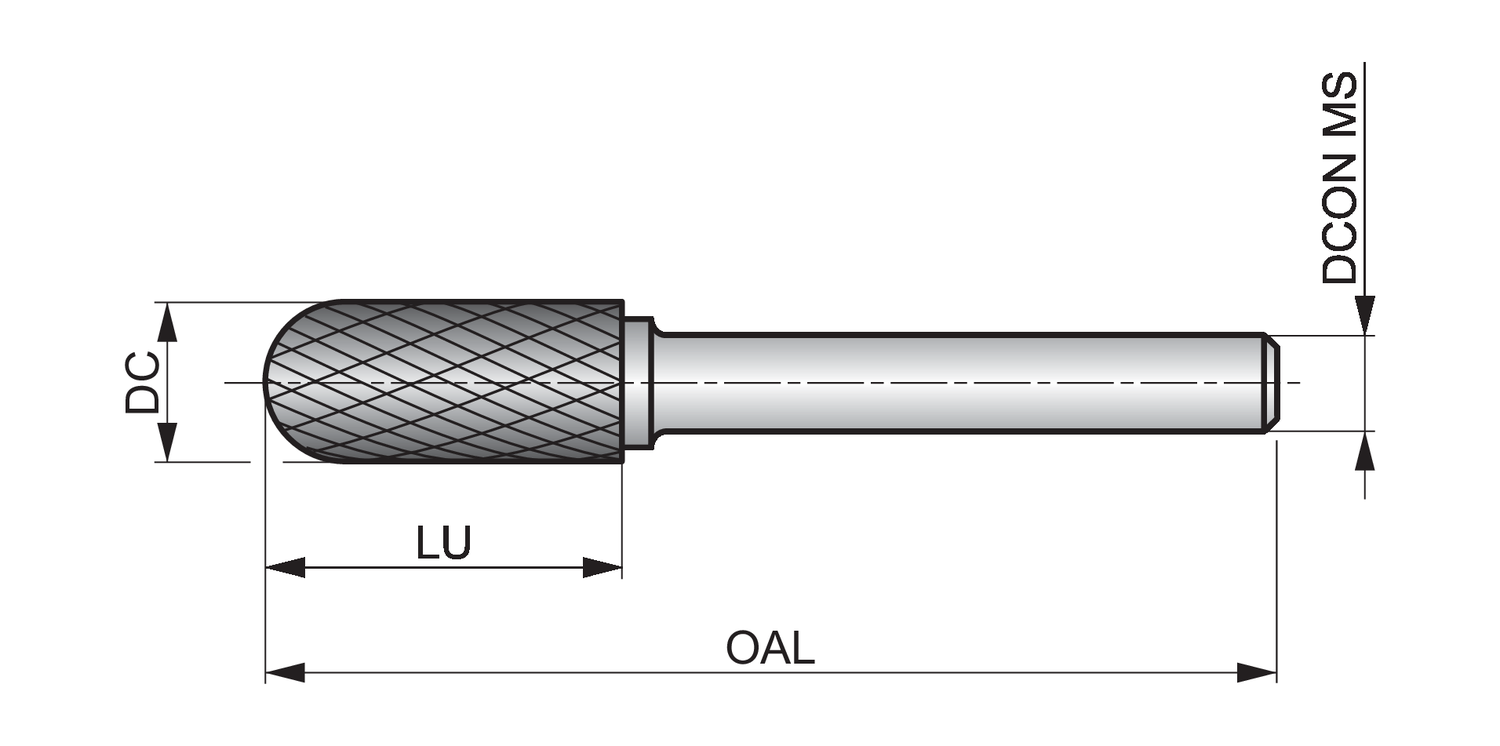

Connection diameter - fractional inch (DCON MS)
1/8
Connection diameter - inch (DCON MS)
0.125
Connection diameter - millimeter (DCON MS)
3.18
Cutting diameter - fractional inch (DC)
1/8
Cutting diameter - inch (DC)
0.125
Cutting diameter - millimeter (DC)
3.18
Depth of cut maximum - fractional inch (APMX)
9/16
Material
HM
Overall length - fractional inch (OAL)
3
Overall length - inch (OAL)
3
Overall length - millimeter (OAL)
76.2
Shank
Cylindrical shank
Usable Length - fractional inch (LU)
9/16
SC-DC rotary carbide burrs will efficiently de-burr in corners with radius, having a ball-nosed cylinder shape (Shape C) with skip flute geometry.
The DC design helps break chips more effectively, improving control when de-burring by hand by the maintenance and repair professional.
SC-DC rotary cutters are manufactured from premium carbide material which will provide superior performance and extended tool life at high speeds, whilst the bright finish prevents workpiece material from sticking to the cutting edges of the tool so you get clean results every time.
As an extra feature, the steel shank is hardened and toughened for greater rigidity and strength.
This decreases vibration and further extends tool life
