SG-60DC 7466329 Rotary Burr - Pointed Tree 5/8 x 1/4 x 1 x 2.3/4
MODEL SG-60DC
$49.75 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBurr Shape
G - Pointed Tree Shape
Burr Type Code (BTC)
Double Cut Geometry
Coating
Bright

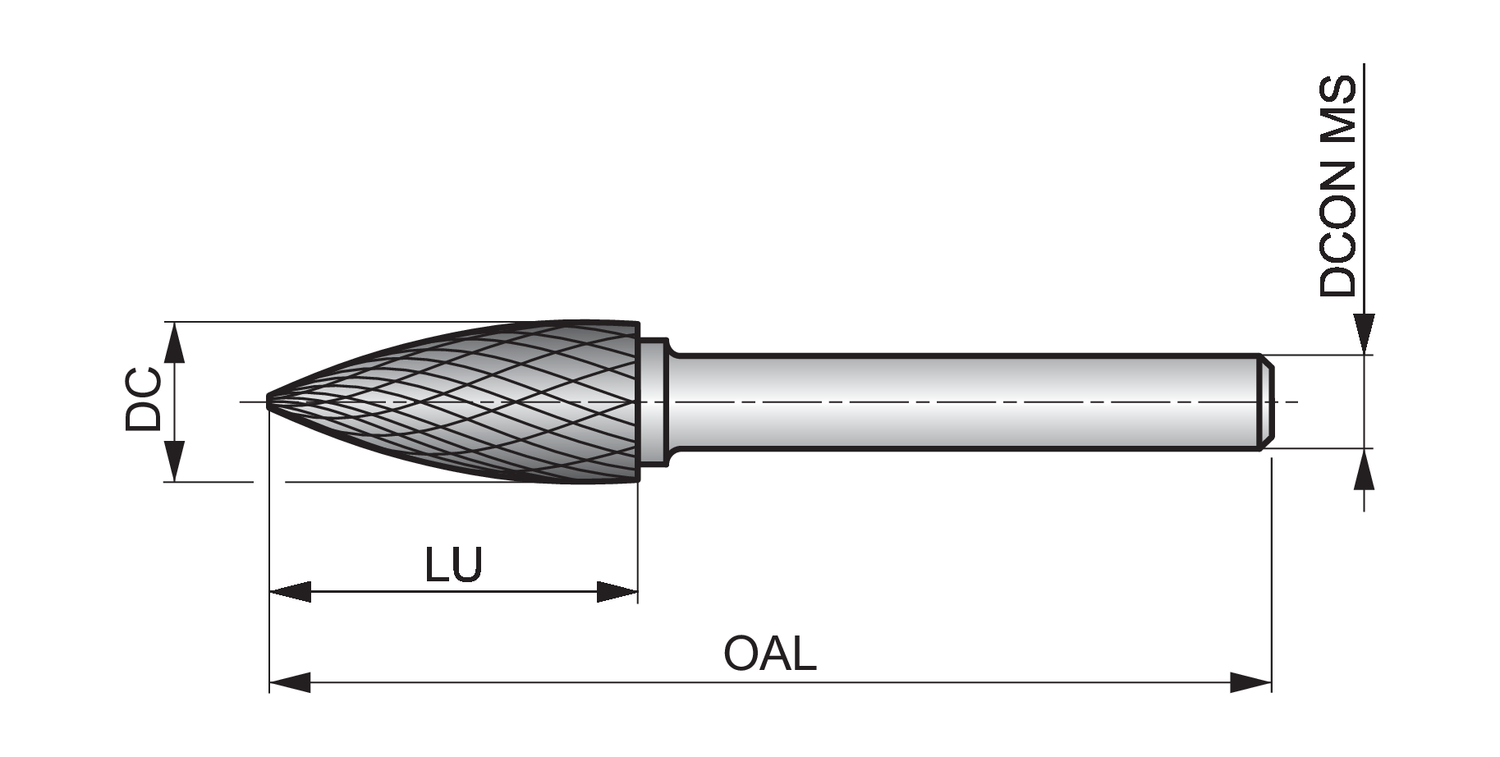

Connection diameter - fractional inch (DCON MS)
1/4
Connection diameter - inch (DCON MS)
0.25
Connection diameter - millimeter (DCON MS)
6.35
Cutting diameter - fractional inch (DC)
5/8
Cutting diameter - inch (DC)
0.625
Cutting diameter - millimeter (DC)
15.88
Depth of cut maximum - fractional inch (APMX)
1
Material
HM
Overall length - fractional inch (OAL)
2.3/4
Overall length - inch (OAL)
2.75
Overall length - millimeter (OAL)
69.85
Shank
Cylindrical shank
Usable Length - fractional inch (LU)
1
One of Precision’s range of rotary carbide burrs, SG-DC rotary burrs are made from premium carbide material which will ensure a long tool life and great performance at high speeds.
They are designed with a pointed tree shape (Shape G) for de-burring in tight corners.
The DC geometry on the burr breaks chips more effectively and improves control when de-burring by hand, whilst the toughened and hardened steel shank makes the tool stronger and more rigid to reduce vibration and so extend the life of the tool.
Completing the main features of SG-DC rotary burrs is the bright finish which stops workpiece material from sticking to the cutting surface of the burrs to give you a smoother, cleaner finish
