312SM17/64 47233792 Bronze 135° Heavy Duty Stub Drill 17/64 inch
MODEL 312SM17/64
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$3.79 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
ANSI
Coating
ST/Bronze

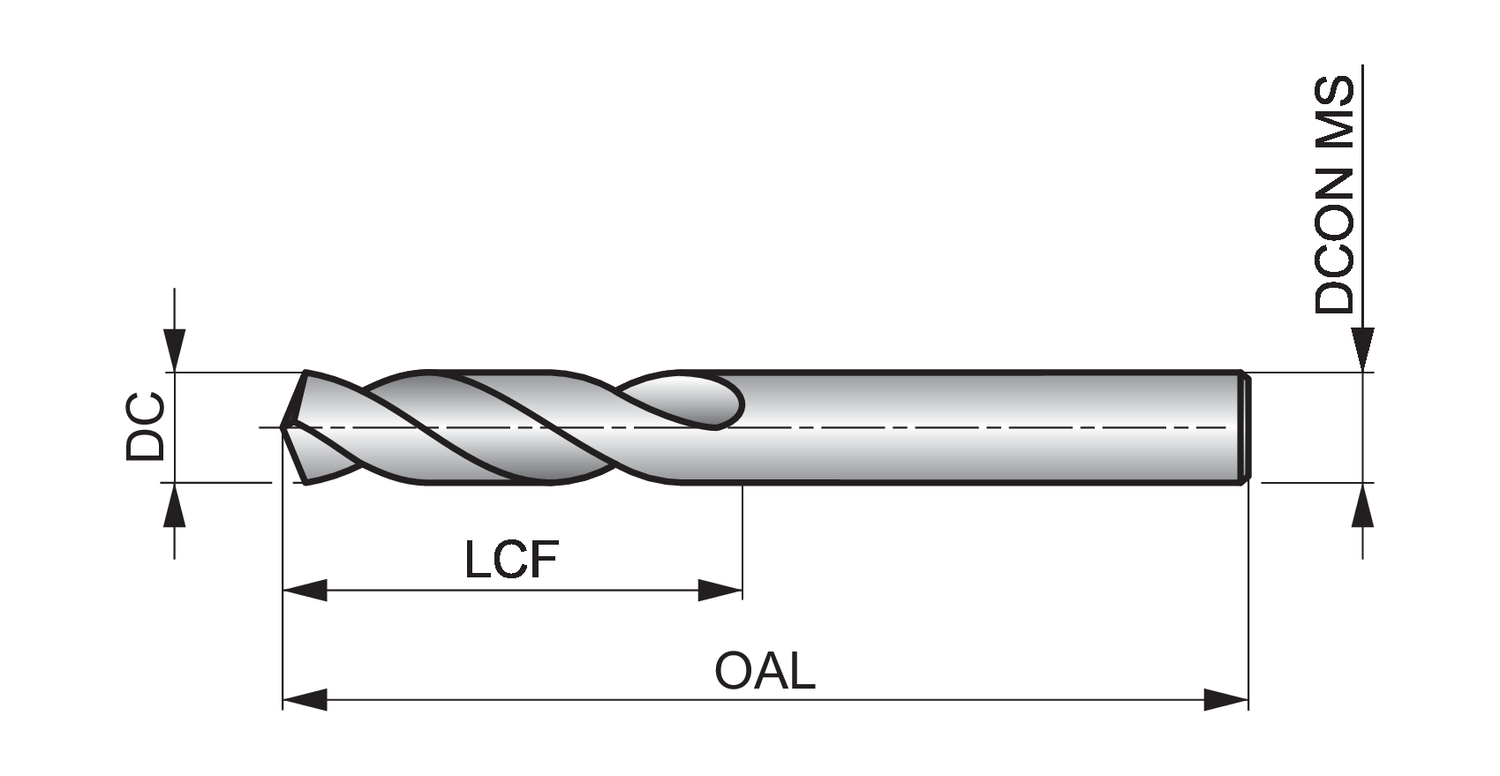

Connection diameter - inch (DCON MS)
0.2656
Cutting diameter - fractional inch (DC)
17/64
Cutting diameter - inch (DC)
0.2656
Cutting diameter - millimeter (DC)
6.75
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
1.7/16
Length chip flute - inch (LCF)
1.4375
Material code (BMC)
HSS
Overall length - fractional inch (OAL)
2.5/8
Overall length - inch (OAL)
2.625
Overall length - millimeter (OAL)
66.68
Point Angle (SIG)
135
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
2.5
Designed with a short flute and overall length for increased rigidity, hole accuracy and tool life.
SelfCentering 135° Split Point for reduced the thrust requirements and minimizes ‘walking’ particularly on curved surfaces.
Recommended for use in portable power tools.
