46031.1/4X82 4710803 Countersink ANSI 1FL 1.1/4 inch
MODEL 46031.1/4X82
$97.22 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Countersinking 82°
Basic Standard
ANSI
Coating
Bright

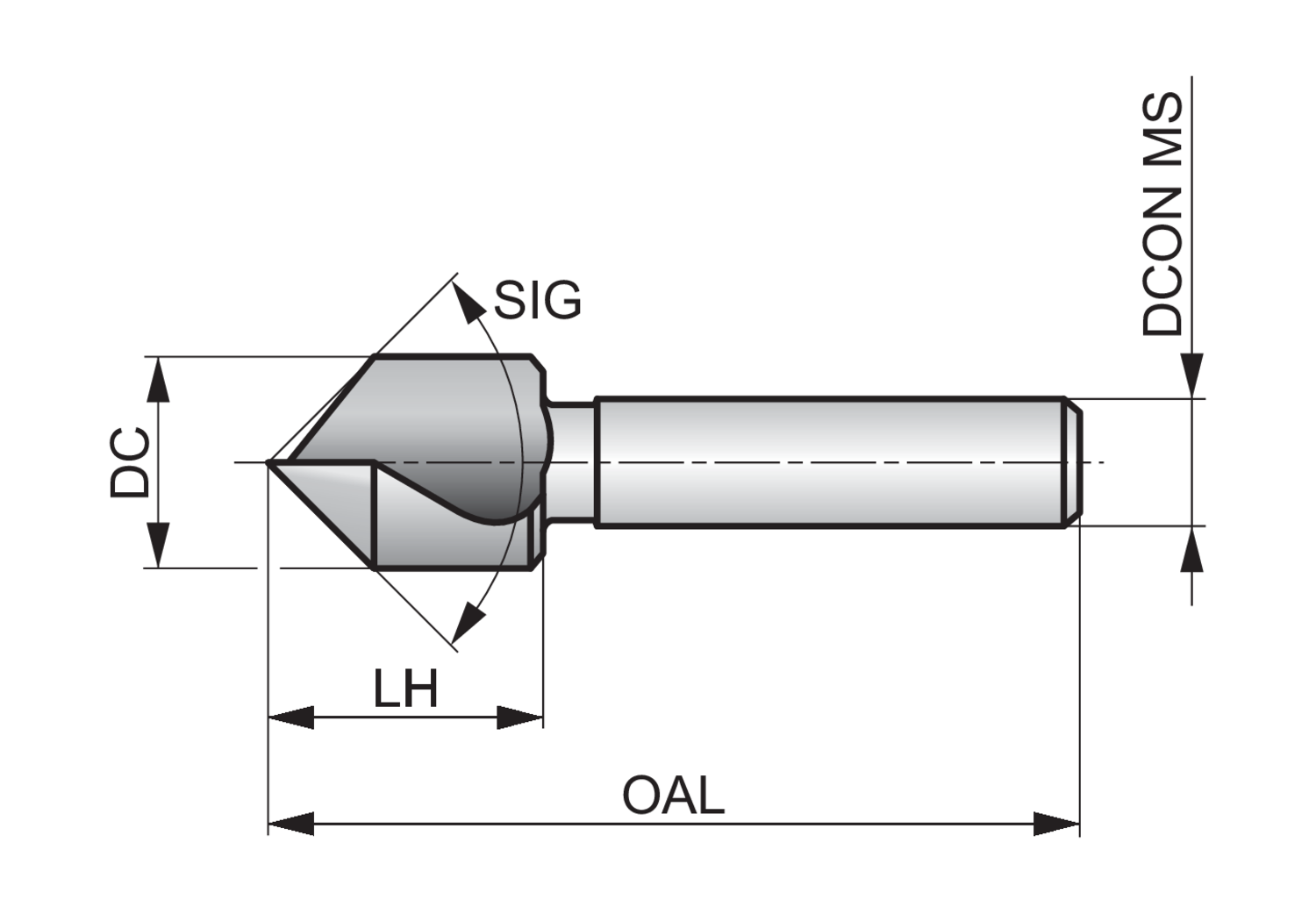

Connection diameter - fractional inch (DCON MS)
1/2
Connection diameter - inch (DCON MS)
0.5
Connection diameter - millimeter (DCON MS)
12.7
Cutting diameter - fractional inch (DC)
1.1/4
Cutting diameter - inch (DC)
1.25
Cutting diameter - millimeter (DC)
31.75
Flute count (NOF)
1
Functional length - fractional inch (LF)
1.1/2
Hand (Cutting direction)
Right
Material
HSS
Overall length - fractional inch (OAL)
3.1/2
Overall length - inch (OAL)
3.5
Overall length - millimeter (OAL)
88.9
Point Angle (SIG)
82
Shank
Cylindrical shank
Countersink with 1-flute, 82° chamfering angle, maximum diameter 1.1/4" with an overall length of 3.1/2" and a head length of 1.1/2" and 1/2" straight shank, according to ANSI standard to produce a conical seat for US standard countersunk-head screws, HSS with standard bright finish for machining free machining, plain carbon and tool steel, wrought and copper or copper alloys.
