1500S1.1/2X6 6006677 UNC Hand Tap 3pc Set 4FL 1.1/2 inch x 6
MODEL 6006677
Obsolete
This item is no longer available on MROSupply.com, however we have this identical replacement.
View Replacement
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI

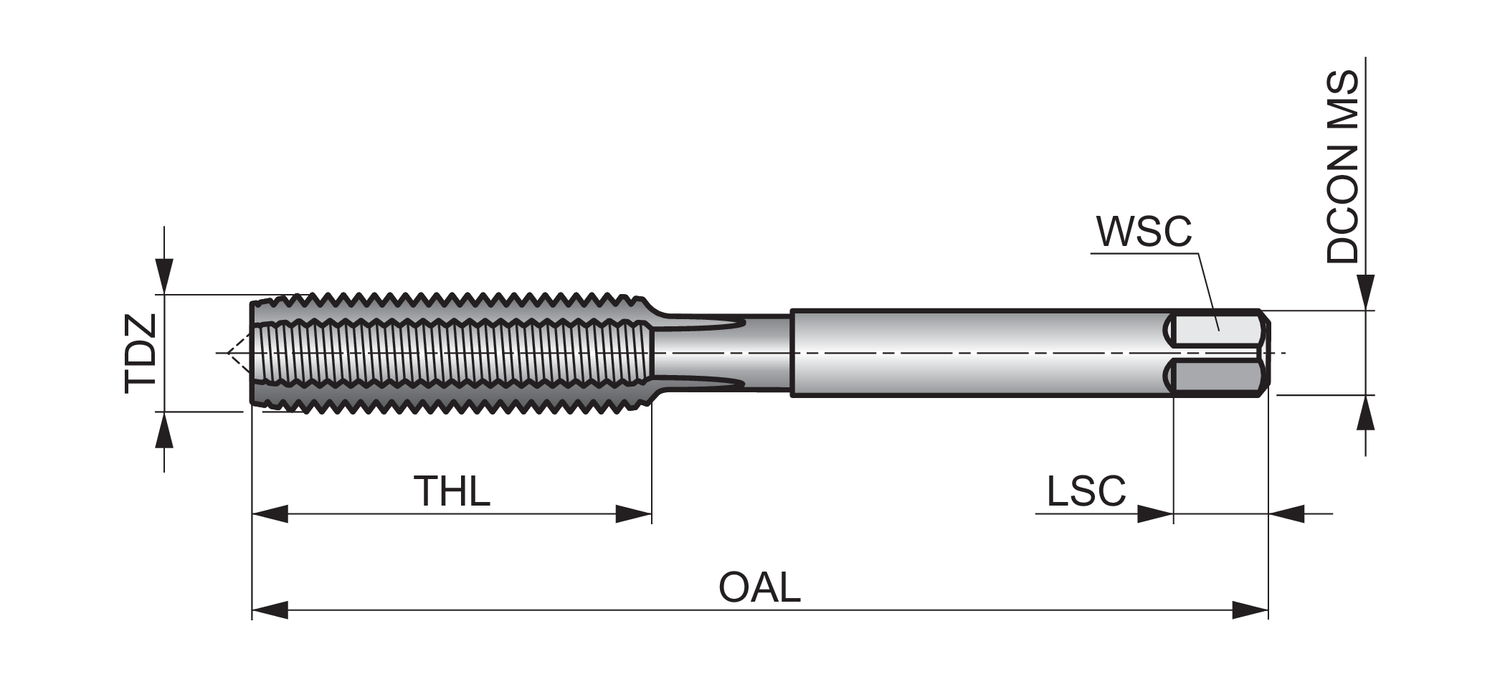

Clamping width - fractional inch (WSC)
1.23
Clamping width - inch
0.925
Coating
Bright
Coating property (CTP)
4
Connection diameter - inch (DCON MS)
6.3/8
Connection diameter - millimeter (DCON MS)
31.24
Flute count (NOF)
4
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS
Overall length - fractional inch (OAL)
6.3/8
Overall length - inch (OAL)
6.375
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
1.1/2
Thread form (THFT)
UNC - Unified Coarse
Threading length - fractional inch (THL)
3"
Threads per inch (TPI)
6
Tolerance limit
H4
Usable length (ULDR)
1.5
For a set of three 1500 Union Butterfield hand taps in taper, plug and bottoming chamfers, choose 1500S sets.
Available in UNC, UNF and UNS thread forms, the 1500 taps in the sets have straight flutes for threading both through and blind holes and are manufactured to conform to the American National Standards Institute.
Suitable for hand tapping many materials including cast iron, steel, aluminum and stainless steel, the taps have a bright finish which prevents workpiece material from sticking to the cutting surfaces of the tap for accurate threads.
Each set of 1500S includes one each of 1500 taper, plug and bottoming chamfer taps.
