Vernon Devices CCH-CCM0650 M6.5 CHAM-BIT

Name: Vernon Devices CCH-CCM0650 M6.5 CHAM-BIT
Brand: Vernon Devices
Price: 43.48 USD
Availability: InStock

MODEL CCH-CCM0650

BRAND

SKU

6185770

UOM

each

$43.48 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

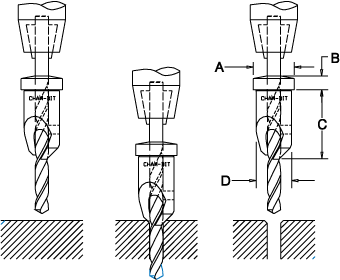

A (mm)

16.0

B (mm)

6.5

C (mm)

25.0

D (mm)

13.0

Deburrs the top of the tapped hole as the tap is being withdrawn from the workpiece.
Eliminates expensive secondary deburring.
Cuts only during tap withdrawal for a smooth clean chamfer.
Improves part quality, no tapped hole goes unfinished.
Repeatable results while tapping thousands of holes!
Easy to install.
Re-sharpen on any radial relief grinding fixture.
We maintain a large stock in both SAE and Metric sizes for 2, 3 and 4 flute taps.
Long-life HSS cutter heads are stocked in your choice of 120° or 90° included angles.
Special cutter angles between 82° and spot facing are available.
Burr-bits are available for forming taps, pipe taps, heilicoil taps, acme taps, Whitworth taps, European ISO and Japanese JIS taps.
