PAX2S000

Image for Illustration purposes only. Actual product may vary

View in markdown

Red Lion PAX2S000 PAX2S strain gage panel meter accepts universal strain gage inputs. The 1/8 DIN meter provides excitation, scaling, and display for load cells and pressure transducers. Ideal for industrial process monitoring and control applications.

MODEL PAX2S000

BRAND

Red Lion Controls

SKU

1284942

UOM

each

Contact supplier for technical support on: 717 767 6511 x2

Click for 5% off

$704.00 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable:No

Specifications:
  • Load Cells, Strain Gage, and Pressure Sensors
  • Universal Power Supply: 40 to 250 VAC or 21.6 to 250 VDC
  • Built-in USB Port
  • Meter Update Rate up to 160/Second
  • Built-in Modbus Communications
  • Setpoints: Dual and Quad Relay; Quad Sinking and Sourcing (W/Option Card)
  • Retransmitted Analog Output (W/Option Card)
  • Communications: RS-232, RS-485, DeviceNet, and Profibus (W/Option Card)

3D Model - PAX2S - IGES_3D Model - PAX2S - IGES.zip
3D Model - PAX2S - Parasolid_3D Model - PAX2S - Parasolid.zip
3D Model - PAX2S - STEP_3D Model - PAX2S - STEP.zip
PAX2S Data Sheet_PAX2S Data Sheet
PAX2S Data Sheet_PAX2S Data Sheet (obsolete - for reference only - see PM-50 for new designs)

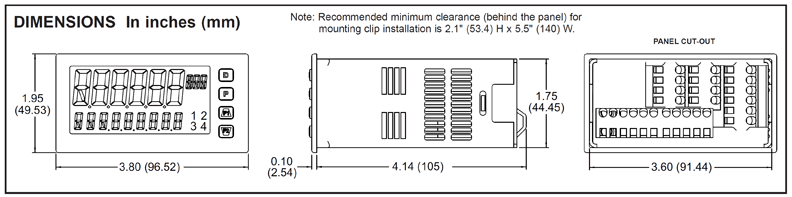

PAX2S Dimension Drawing_Drawing PAX2S Dimension Drawing
PAX2S Installation Guide_PAX2S Installation Guide
PAX2S Installation Guide_PAX2S Installation Guide (obsolete - for reference only - see PM-50 for new designs)
PAX2S Modbus Register Table_PAX2S Modbus Register Table
PAX2S Product Manual_PAX2S Product Manual
PAX2S Product Manual_PAX2S Product Manual (obsolete - for reference only - see PM-50 for new designs)
Panel Meter Brochure - Chinese_Panel Meter Brochure - Chinese
Panel Meter Brochure - French_Panel Meter Brochure - French
Panel Meter Brochure-A4 Size_Panel Meter Brochure-A4 Size
Panel Meter Brochure_Panel Meter Brochure
PAX2S CAD Drawing_PAX2S CAD Drawing.dwg
