Image for Illustration purposes only. Actual product may vary
FAG HYD.NUT150 FIS product-misc
MODEL HYD.NUT150
$1,459.90 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable:No

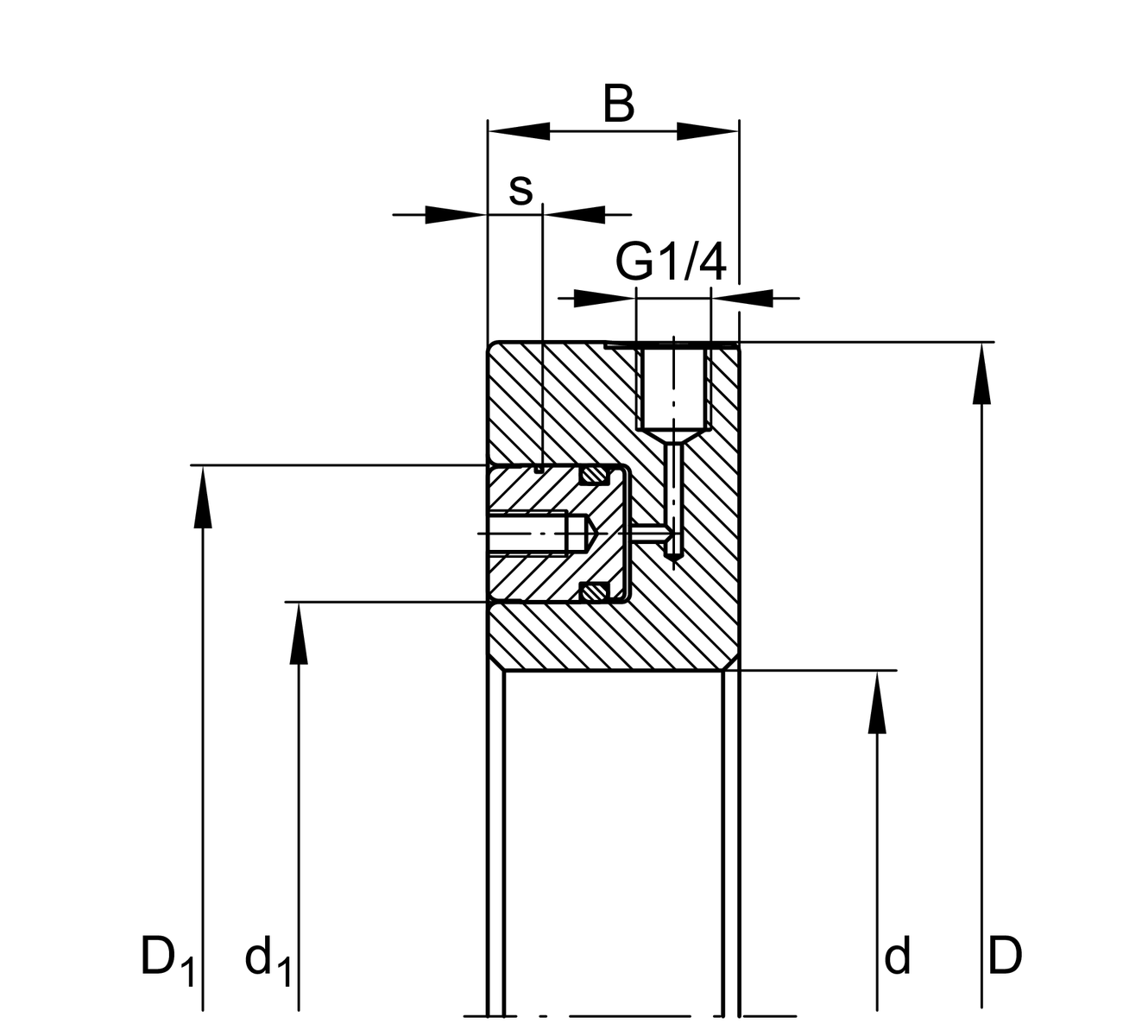

Specifications
| Thread | M150X2 | d 2G |
|---|---|---|
| D m | 220 mm | |
| b 1 | 46 mm |
| Stroke length | 5 mm | |
|---|---|---|
| D K | 191 mm | |
| d K | 151 mm | |
| g | 7 mm |
| Mass, hydraulic nut | 6, 8 kg | m |
|---|---|---|
| Piston surface | 75, 3 cm² | |
| Press-on force at 800 bar | 602 kN |
