#219147
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: SUCTFB 206 20
- Condition: NEW
- SKU: 219147
IPTCI Bearing SUCTFB 206 20 Stainless Insert Thermoplastic Housing 3-Bolt Flange Bracket Set Screw Lock Bore Dia. 1 1/4"S
View additional description- Typically ships in: 1 day
- Weight: 1.1 lb
- Contact supplier for technical support on: 952-224-7030
$69.78 Each
Select Quantity
Mounted bearings are created and housed carefully to match specific industry needs. They come in diverse designs ranging from mounted roller bearings to inserts and mounted plain bearings. The design of the mounted bearings makes it possible to fit, support heavy load, and reduce vibration easily.
Read MoreAdditional Description
Thermoplastic 3-bolt flanges with set screw lock.
- Stainless Steel bearing insert
- End caps available
- B-typeseals
- L3-type seals available in some sizes Consult IPTCI for speed limitations
Unit Number: SUCTFB 206-20SUCTFB 206-20

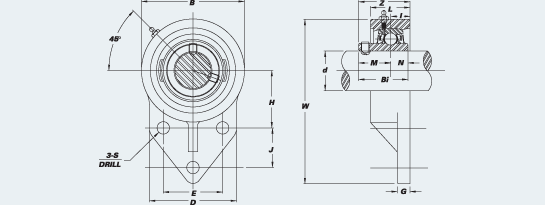

| W | B | D | L | S | G | H | J | E | I | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 3/8 | 3 1/4 | 3 | 1 1/4 | 25/64 | 17/32 | 2 1/16 | 1 1/4 | 1 7/8 | 45/64 | 1 19/32 | 1.5000 | 0.6260 | 0.8740 | 5/16 |
