#219987
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: BUCNPFB 206 19
- Condition: NEW
- SKU: 219987
IPTCI Bearing BUCNPFB 206 19 Black Oxide Insert Nickel Plated Housing 3-Bolt Flange Bracket Set Screw Lock Bore Dia. 1 3/16"
View additional description- Typically ships in: 1 day
- Weight: 2.0 lb
- Contact supplier for technical support on: 952-224-7030
$38.21 Each
Select Quantity
Mounted bearings are created and housed carefully to match specific industry needs. They come in diverse designs ranging from mounted roller bearings to inserts and mounted plain bearings. The design of the mounted bearings makes it possible to fit, support heavy load, and reduce vibration easily.
Read MoreAdditional Description
Nickel plated flange brackets.
- Black Oxide bearing insert
- B-typeseals

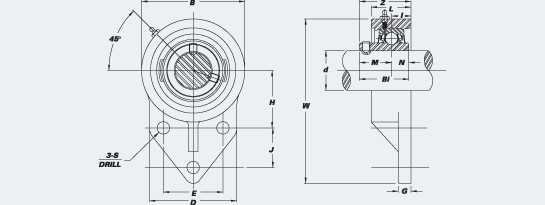

Unit Number: BUCNPFB 206-19
| W | B | D | L | S | G | H | J | E | I | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 3/8 | 3 1/4 | 2 3/4 | 1 1/4 | 25 | 3/8 | 2 1/16 | 1 1/4 | 1 7/8 | 3/4 | 1 37/64 | 1.5000 | 0.6260 | 0.8740 | 5/16 |
