#218365
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: UCFX 15 47
- Condition: NEW
- SKU: 218365
IPTCI Bearing UCFX 15 47 4-Bolt Flange Set Screw Lock Medium Duty Bore Dia. 2 15/16" Wide Inner Race Insert
View additional description- Typically ships in: 1 day
- Weight: 18.5 lb
- Contact supplier for technical support on: 952-224-7030
$167.29 Each
Select Quantity
Jan. 6, 2019
Bearing contamination is caused by the presence of foreign materials especially on the lubricant or clearing solutions. Such foreign materials include dust, abrasive grit, and steel chips, and dirt introduced by dirty hands.
Read MoreAdditional Description
4-Bolt flange units with set screw lock.
- Medium duty
- Wide inner race bearing with greater load carrying capacity than standard duty
- Cast iron housing
- B-type seals
- L3-type seals available in some sizes

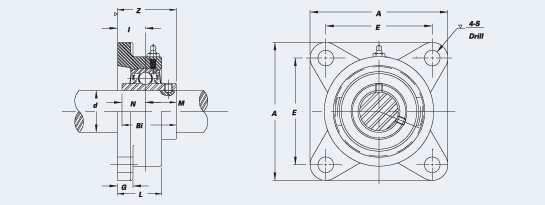

Unit Number: UCF X15-47UCF X15-47
| A | E | I | G | L | S | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|
| 7 3/4 | 6 | 1 37/64 | 15/16 | 2 11/16 | 25/32 | 3 17/32 | 3.2520 | 1.3110 | 1.9410 | 11/16 |
