Image for Illustration purposes only. Actual product may vary
Pramet A20T-DTFNR 3 6788497 Boring Bar ISO D - Right Hand
MODEL 6788497
$286.61 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

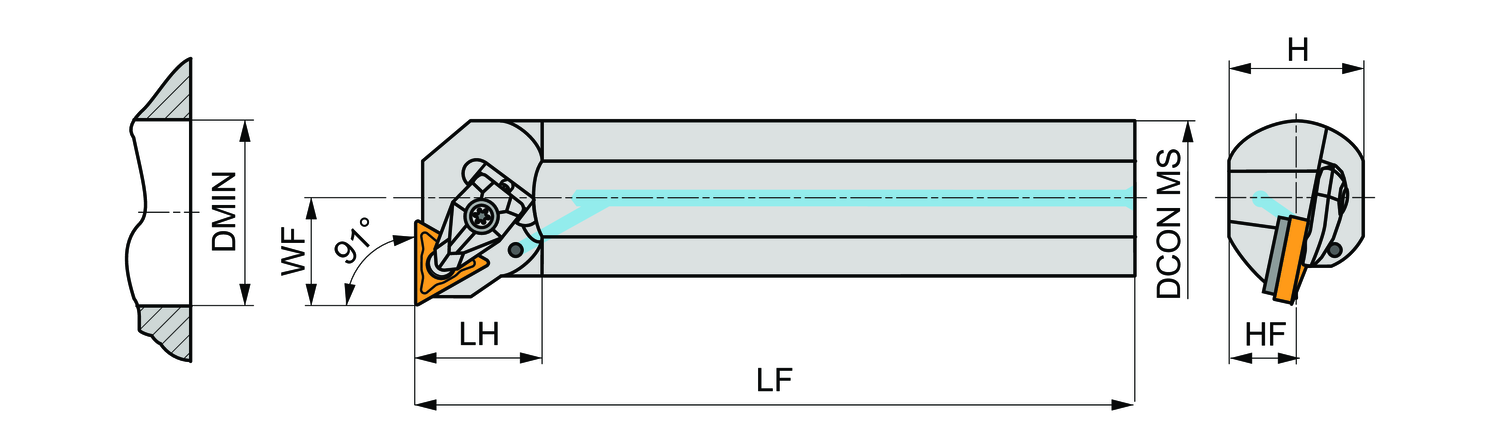

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1.25
Connection diameter - millimeter (DCON MS)
31.8
Coolant supply property (CSP)
1
Functional length - inch (LF)
12
Functional width - inch (WF)
0.765
Head length - inch (LH)
1.417
Inclination angle (LAMS)
-11
Minimum bore diameter - inch (DMIN)
1.468
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
1.181
Double clamp boring bar for holding a triangular negative insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation TN.. 33. ), right hand 90° end cutting with off-set shank, steel with coolant hole, 1.1/4'' diameter x 12'' long for internal chamfering, taper boring and longitudinal boring without shoulder
