Pramet TNGX 160616SR-M:M8310 8020757 Milling Inserts SqSh ECO
MODEL 8020757
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$20.01 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes

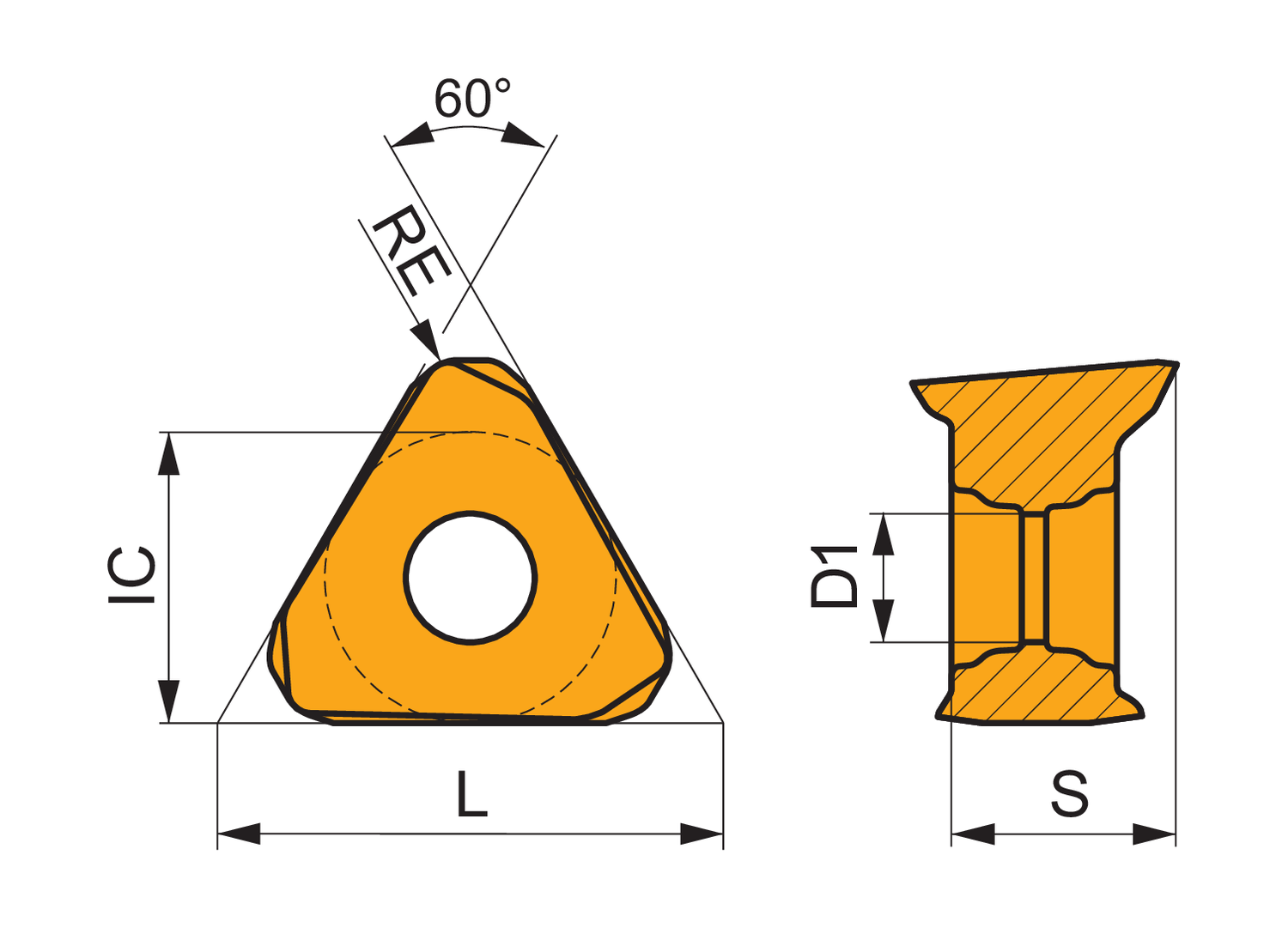

Coating property (CTP)
1
Cooling effect
M
Corner radius - inch (RE)
M8310
Corner radius - millimeter (RE)
PVD
Cutting edge effective length - millimeter (LE)
9.525
Cutting edge length - inch (L)
0.65
Cutting edge length - millimeter (L)
16.5
Fixing hole diameter - inch (D1)
0.173
Fixing hole diameter - millimeter (D1)
4.4
Inscribed circle diameter - inch (IC)
0.375
Inscribed circle diameter - millimeter (IC)
9.525
Insert cutting diameter - millimeter (CDI)
6.58
Insert shape code (SC)
T - triangular 60° included angle
Insert thickness - inch (S)
1.6
Insert thickness - millimeter (S)
6.58
Double-sided milling insert TNGX 1606, triangular for a maximum depth of cut of 10.0mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade range P01-P10 for machining of steel with shoulder face mills STN16
