Pramet 2636-05-25 6827937 End Milling Cutter - Chamfering
MODEL 6827937
$361.93 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

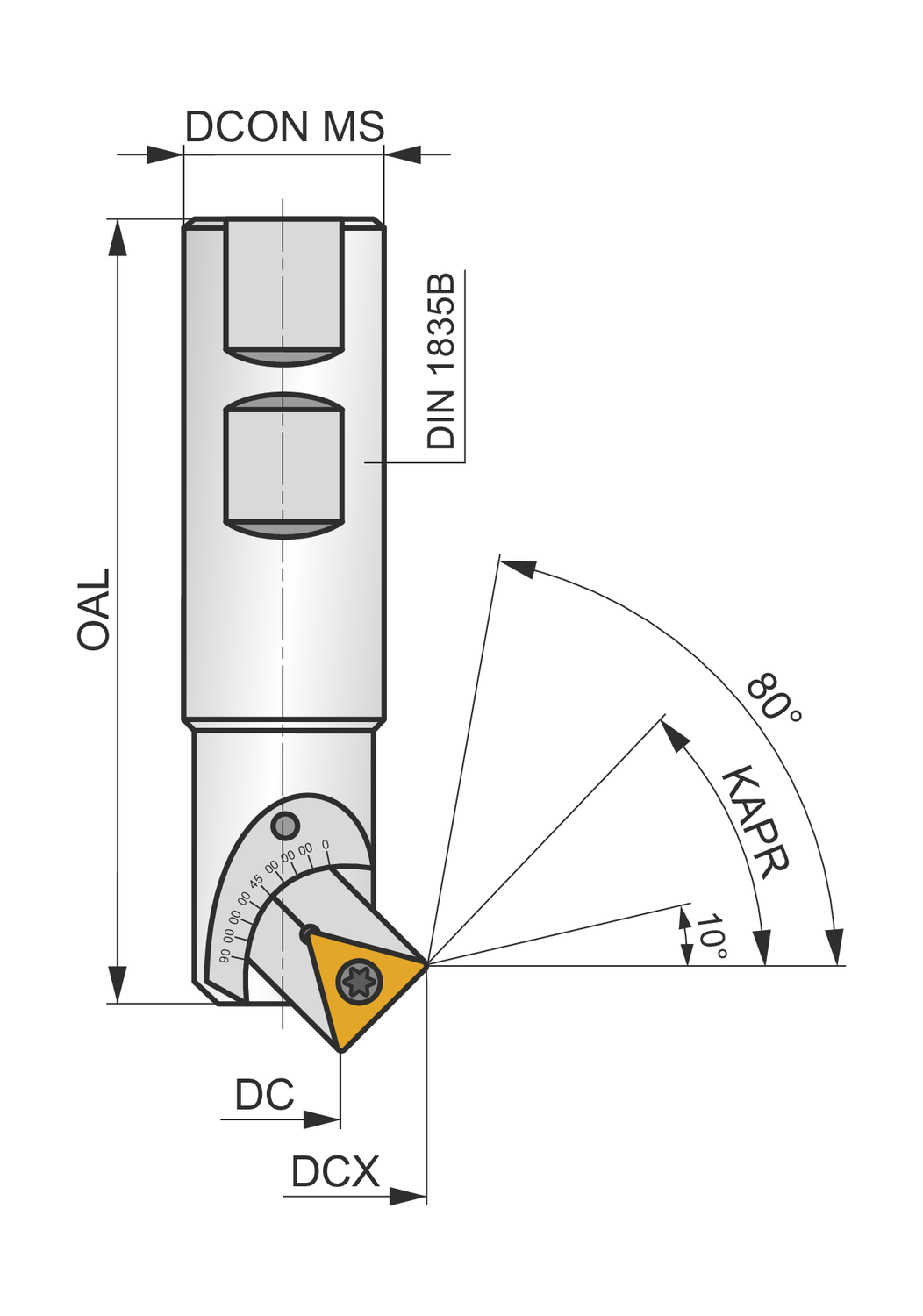

Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Cutting diameter - inch (DC)
0.197
Cutting diameter - millimeter (DC)
5
Cutting diameter maximum - inch (DCX)
1.22
Cutting diameter maximum - millimeter (DCX)
31
Cutting pitch differential (CPDF)
0
Hand (Cutting direction)
Right
Insert index count (NOI)
1
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Radial rake angle (GAMF)
-8
Rotational speed maximum (RPMX)
18100
Shank
Weldon shank DIN 1835B
Tool cutting edge angle (KAPR)
10
Chamfer mill with double negative geometry which utilises 1 off TCMT 16T304E-FM:T83.. or TCMT 16T308E-FM:T83.. single-sided insert, cutting diameter 5 to maximum 31mm with 10 -80° approach angle and 25mm Weldon shank according to DIN 1835B, 100mm overall length for chamfering with a maximum depth of cut of 8.5mm
