MROSupply Has Hundreds Of Brands, Millions Of Products, Including
Image for Illustration purposes only. Actual product may vary
Pramet 150A4R200W125-ISTN16-C 8021720 End Milling Cutter - Square Shoulder
MODEL 8021720
$414.37 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

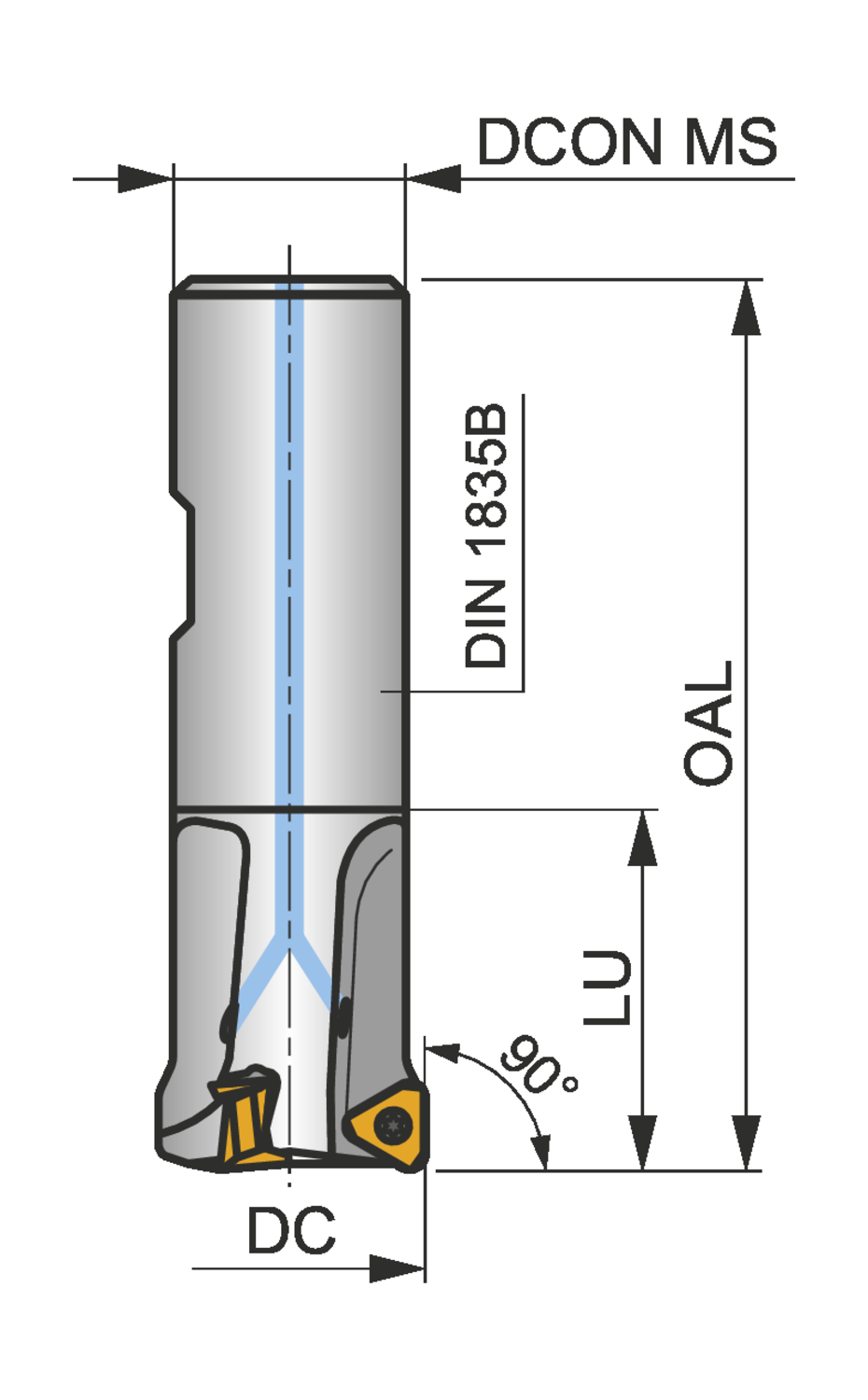

Axial rake angle (GAMP)
-9.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
31.75
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.5
Cutting diameter - millimeter (DC)
38.1
Cutting pitch differential (CPDF)
0
Hand (Cutting direction)
Right
Overall length - inch (OAL)
4.724
Overall length - millimeter (OAL)
120
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-16
Shank
Weldon shank DIN 1835B
Usable Length - inch (LU)
1.969
Shoulder face mill with double negative geometry which utilises 4 of TNGX 1606.. double-sided inserts, cutting diameter 1.500" with 90° approach angle and Weldon shank according to DIN 1835B, through coolant for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes
