Pramet 50T03R-S90AD11E37-C helical shell milling cutter, square shoulder, 1.969 in (50 mm) cutting diameter, 1.457 in (37 mm) maximum depth of cut, 12 AD..11 inserts, 22 mm connection bore, through coolant, right hand. Article 6759650.
MODEL 6759650
$1,115.62 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

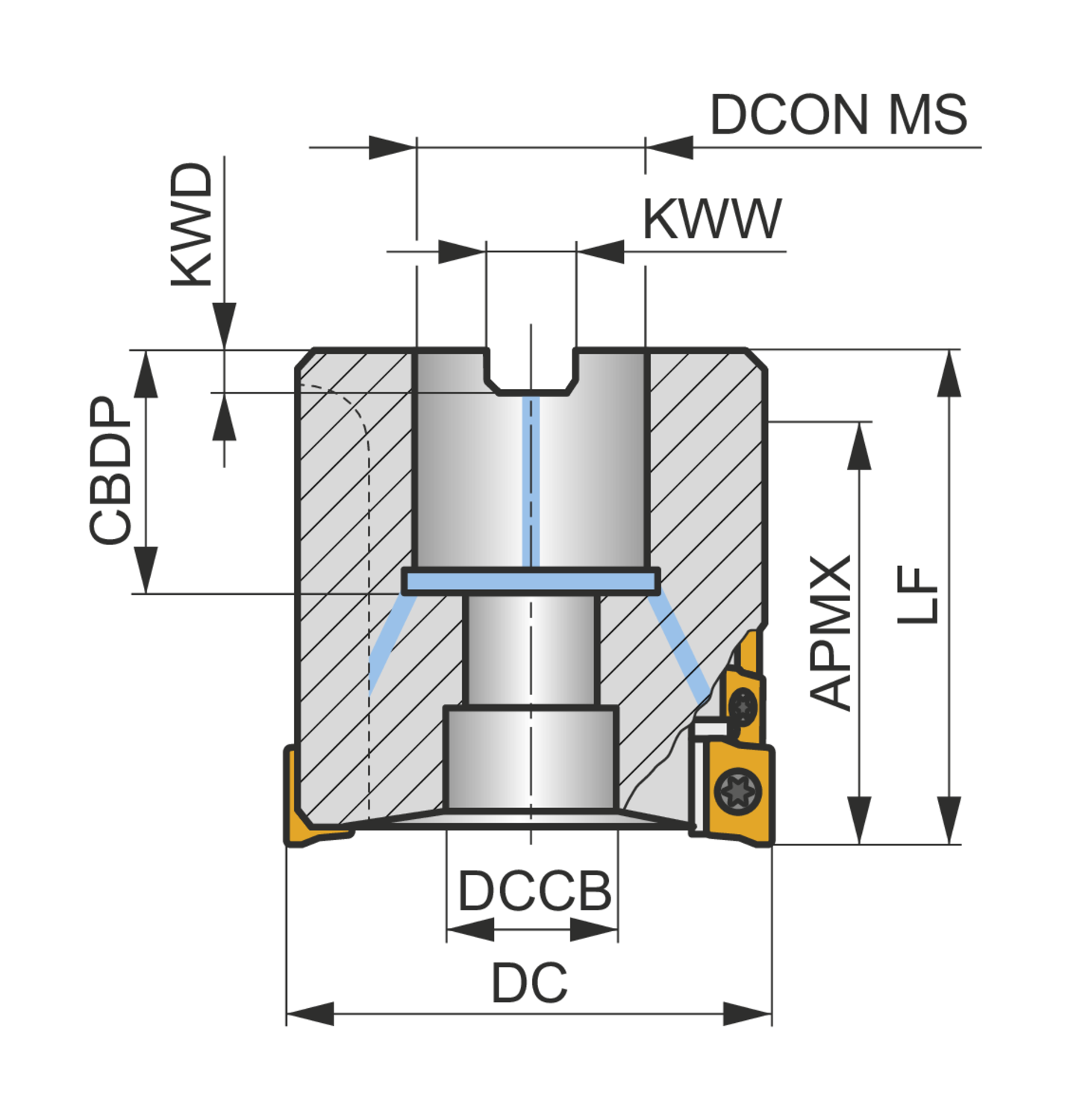

Axial rake angle (GAMP)
12
Clamping Type Code (MTP)
Screw clamping through hole
Connection bore depth - millimeter (CBDP)
21
Connection diameter - inch (DCON MS)
0.866
Connection diameter - millimeter (DCON MS)
22
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.709
Counterbore diameter connection bore - millimeter (DCCB)
18
Cutting diameter - inch (DC)
1.969
Cutting diameter - millimeter (DC)
50
Depth of cut maximum - millimeter (APMX)
37
Flute count (NOF)
3
Functional length - millimeter (LF)
58
Hand (Cutting direction)
Right
Insert index count (NOI)
12
Peripheral effective cutting edge count (ZEFP)
12
Radial rake angle (GAMF)
-7.2
Rotational speed maximum (RPMX)
17000
Shank
Shell mill DIN 8030 – helical mill
Shoulder mill with extended flute with positve/negative geometry which utilises 12 off ADMX 11T3.. single-sided inserts, cutting diameter 50mm with 90° approach angle and 22mm connection bore according to DIN 8030, 37mm functional and 58.0mm protrusion length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 37mm
