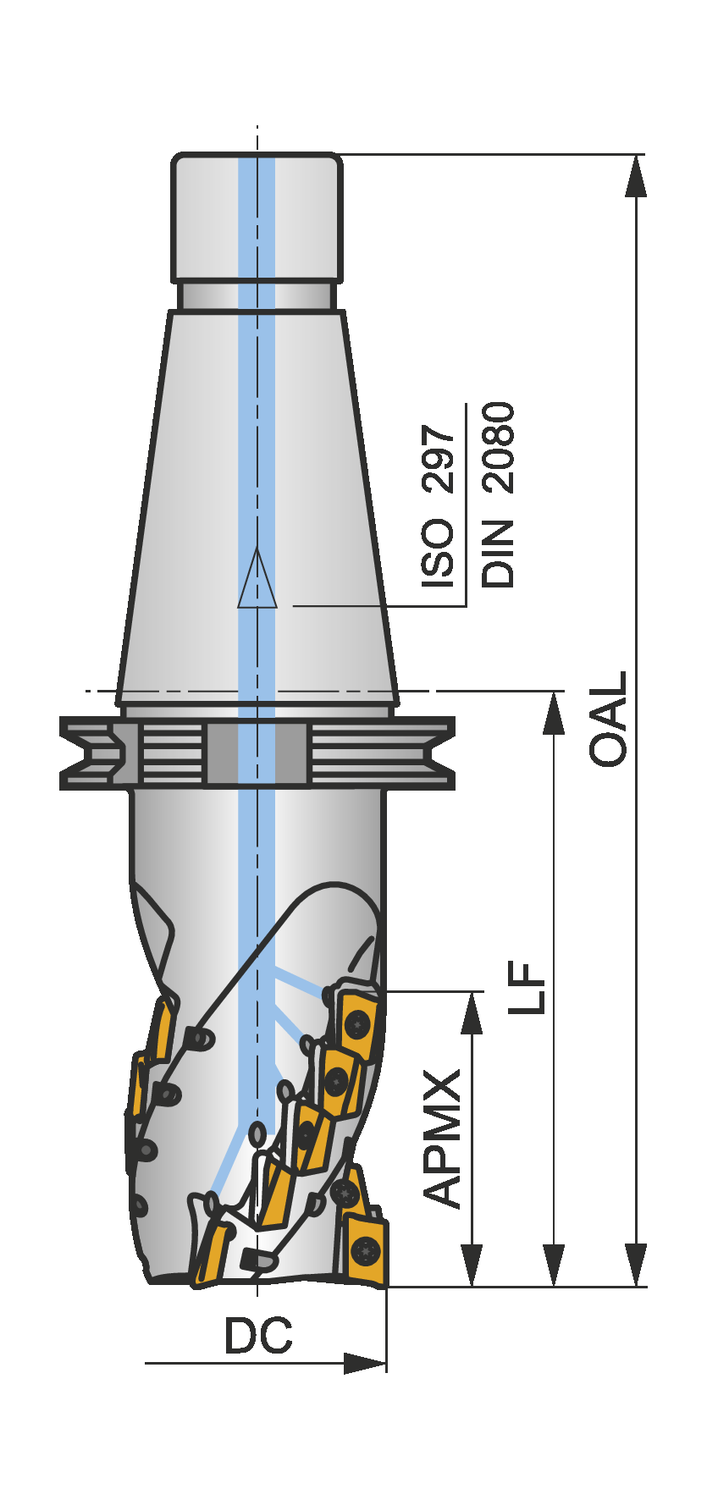

Pramet 80J4R165G50-SAD16E108-C 6922418 Helical End Milling Cutter - Square Shoulder
MODEL 6922418
$2,013.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
12
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
50
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
3.15
Cutting diameter - millimeter (DC)
80
Cutting pitch differential (CPDF)
1
Depth of cut maximum - millimeter (APMX)
108
Flute count (NOF)
4
Functional length - millimeter (LF)
165
Hand (Cutting direction)
Right
Insert index count (NOI)
32
Overall length - inch (OAL)
11.496
Overall length - millimeter (OAL)
292
Peripheral effective cutting edge count (ZEFP)
32
Radial rake angle (GAMF)
-6
Rotational speed maximum (RPMX)
10400
Shank
Arbor DIN 2080-1
Shoulder mill with extended flute with positve/negative geometry which utilises 32 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 80mm with 90° approach angle and SK 50 taper shank according to ISO 297, 108mm functional and 292mm overall length, through coolant and differential pitch for deep shoulder milling and deep slot milling with a maximum depth of cut of 108mm
