Pramet TNGJ 220720-PM-S02:T9226 6931833 Bar Peeling Insert
MODEL 6931833
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$41.65 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
PM-S02
Coating
T9226
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended

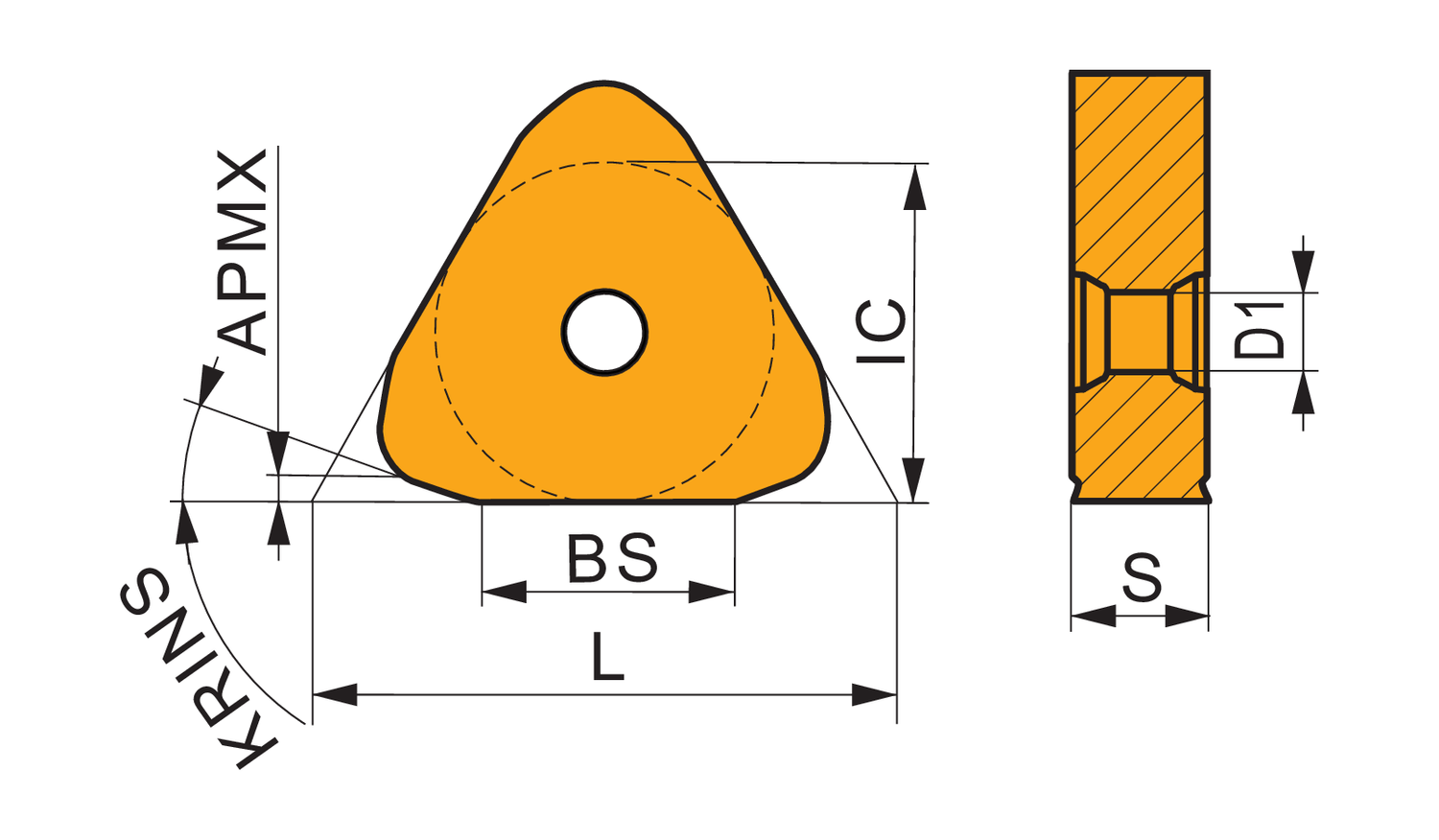

Cutting edge length - inch (L)
1.496
Cutting edge length - millimeter (L)
38
Depth of cut maximum - inch (APMX)
0.079
Depth of cut maximum - millimeter (APMX)
2
Depth of cut minimum - inch (APMN)
0.016
Depth of cut minimum - millimeter (APMN)
0.4
Feed maximal - millimeter
12
Feed minimal - millimeter
1.2
Feed_MAX_IMP_NUM
0.472
Feed_MIN_IMP_NUM
0.047
Fixing hole diameter - inch (D1)
0.276
Fixing hole diameter - millimeter (D1)
7
Inscribed circle diameter - inch (IC)
0.865
Inscribed circle diameter - millimeter (IC)
21.96
Insert shape code (SC)
T - triangular 60° included angle
Insert thickness - inch (S)
0.313
Insert thickness - millimeter (S)
7.94
Major cutting edge angle (KRINS)
20
Wiper edge length - inch (BS)
0.472
Wiper edge length - millimeter (BS)
12
Double-sided negative barpeeling insert, triangular with inscribed circle diameter of 21.96mm, 7.94mm thick for 2mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PM with S02 cutting edge preperation, in grade T9226, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for medium strength steels and stainless-steels
