Dormer B1007/8 5986299 Hand Reamer 8FL 7/8 inch
MODEL 5986299
$128.32 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Achievable hole tolerance (TCHA)
H7
Basic Standard
DIN 206

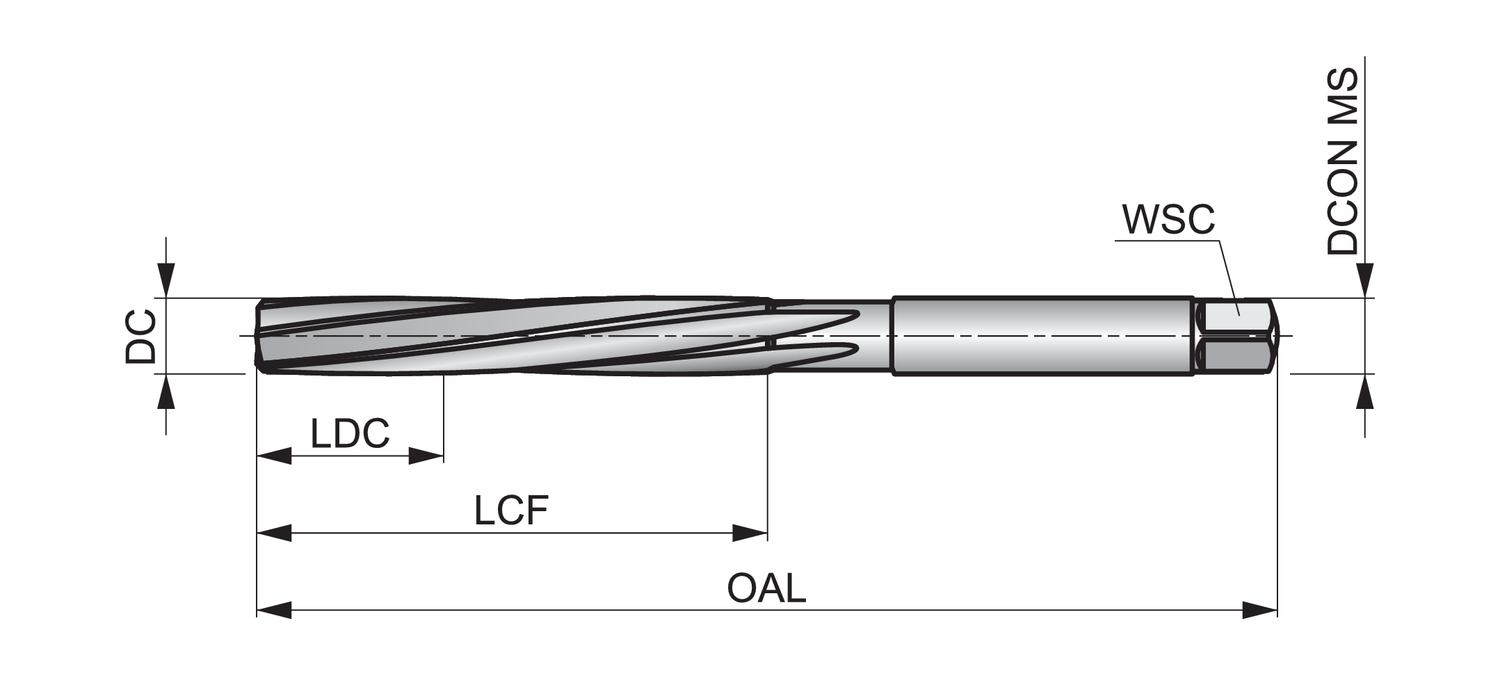

Clamping width - inch
0.7087
Clamping width - millimeter (WSC)
18
Coating
Bright/ST
Connection diameter - inch (DCON MS)
0.8748
Connection diameter - millimeter (DCON MS)
22.22
Cutting diameter - fractional inch (DC)
7/8
Cutting diameter - inch (DC)
0.875
Cutting diameter - millimeter (DC)
22.22
EDP number
179949
Flute count (NOF)
8
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
107
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986299
Ordering code ANSI
B1007/8
Overall length - inch (OAL)
8.4646
Overall length - millimeter (OAL)
215
Shank
Cylindrical shank with Square
Shank Diameter - millimeter
22.22
Hand reamer with left hand slow spiral flutes and a square drive, diameter 22.22mm (7/8") with an overall length of 215mm, a flute length of 107mm and 27mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys.
