Dormer C34611.0 5984014 End Mill N 844 L 11.00 mm
MODEL 5984014
$57.49 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 L
Coating
Bright

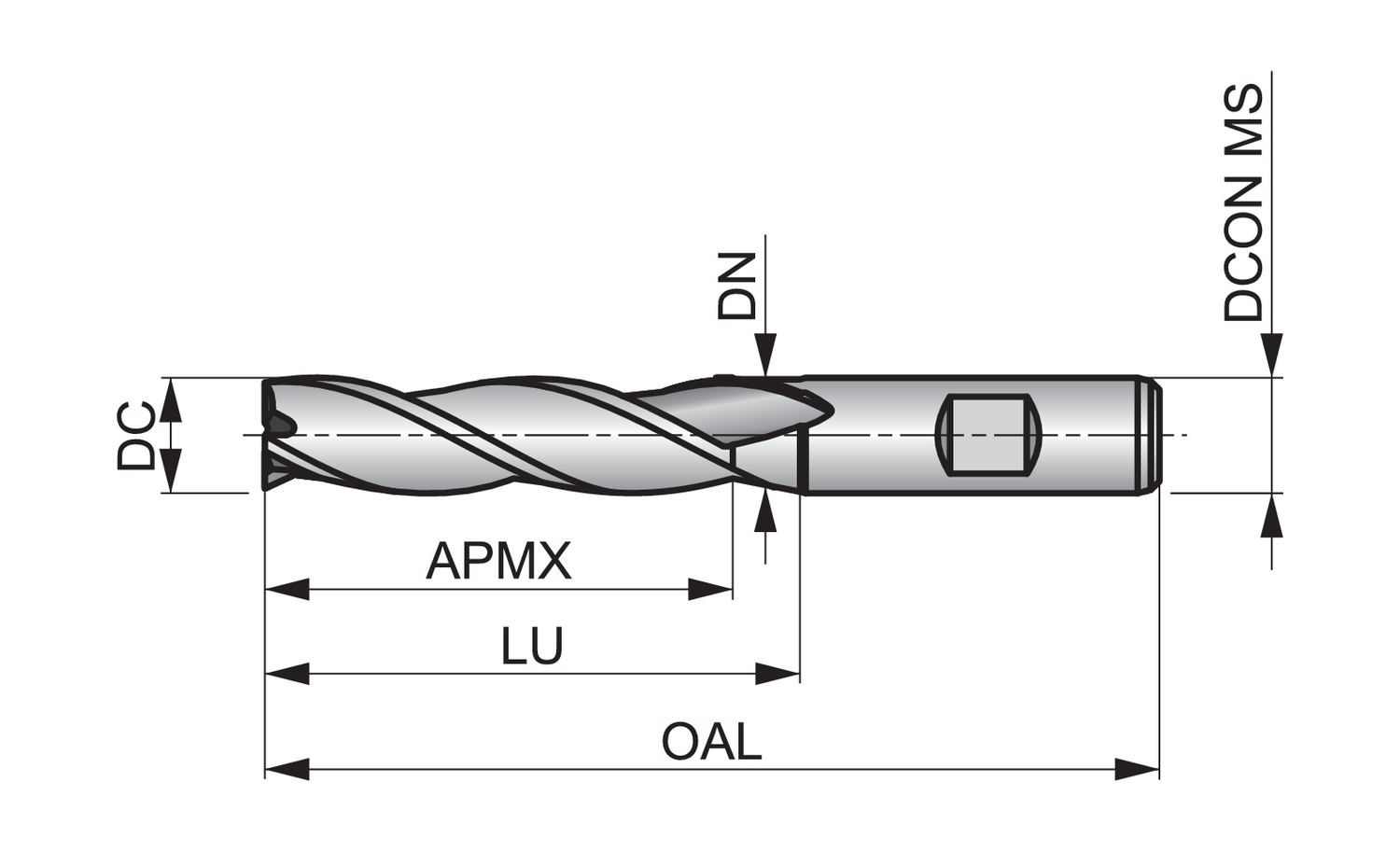

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Cut length
Long
Cutting diameter - inch (DC)
0.4331
Cutting diameter - millimeter (DC)
11
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
1.7717
Depth of cut maximum - millimeter (APMX)
45
EDP number
126240
Flute count (NOF)
3
Flute helix angle (FHA)
30
Material
HSS-E
Material application
N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5984014
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
C34611.0
Overall length - inch (OAL)
4.0157
Overall length - millimeter (OAL)
102
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
C346 3-flute milling cutters are designed to provide high rigidity for standard slotting and profile milling and can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron.
They are long series cutters for machining deeper slots and walls in places which are difficult to reach.
C346 milling cutters have a long tool life and great performance thanks to the High Speed cobalt used in manufacture, whilst the bright finish means clean and accurate milling is assured by preventing workpiece material from sticking to the cutting edges of the tool
