Dormer C90813.0 5985841 Roughing End Mill 13.00 mm
MODEL 5985841
$115.54 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
ALCRONA
Coating property (CTP)
1

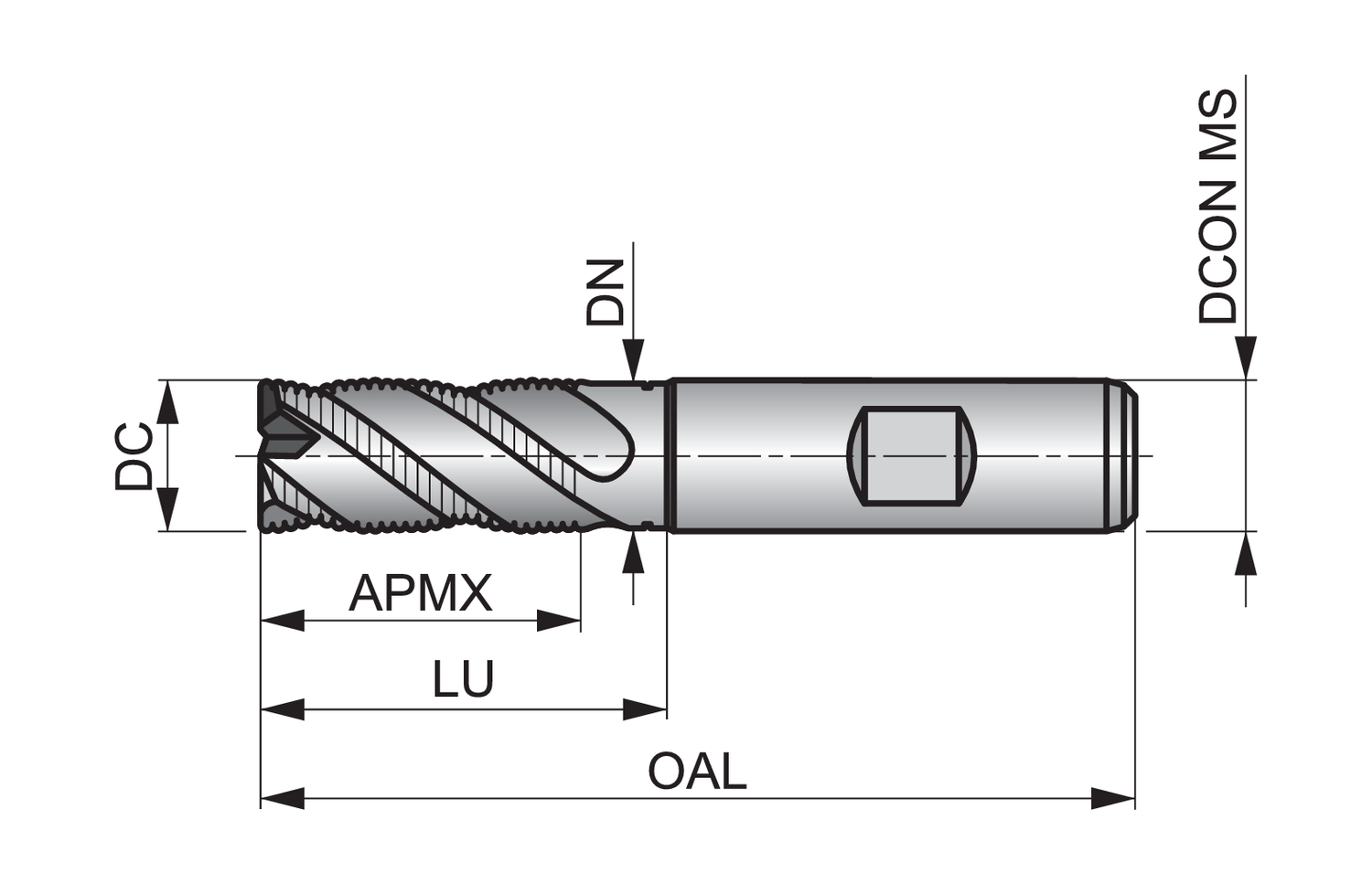

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Cut length
Short
Cutting diameter - inch (DC)
0.5118
Cutting diameter - millimeter (DC)
13
Cutting diameter tolerance class (TCDC)
k12
Depth of cut maximum - inch (APMX)
1.0236
Depth of cut maximum - millimeter (APMX)
26
EDP number
346211
Flute count (NOF)
4
Flute helix angle (FHA)
35
Material
HSS-E-PM
MID number
5985841
Mill Profile
NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker
Neck diameter - inch (DN)
0.4528
Neck diameter - millimeter (DN)
11.5
Ordering code ANSI
C90813.0
Overall length - inch (OAL)
3.2677
Overall length - millimeter (OAL)
83
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
37.5
C908 4-flute roughing end mills have a medium length flute design with an NRA profile for efficient chip breaking when roughing.
The 35 degree helix reduces vibration and shows an improvement in performance when CNC machining, whilst the Alcrona coating further improves performance when milling difficult to machine materials, and increases the life of the tool.
With the great performance and tool life you get from the powder metal High Speed cobalt, used in manufacture, C908 roughing end mills really are a versatile choice and are suitable for roughing operations in steels, stainless steels and cast iron, when plunging, ramping and profile milling
