Dormer S223HB3/8XR.015 7648705 Corner Radius End Mill 3/8 inch
MODEL 7648705
$51.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlTiN
Coating property (CTP)
1

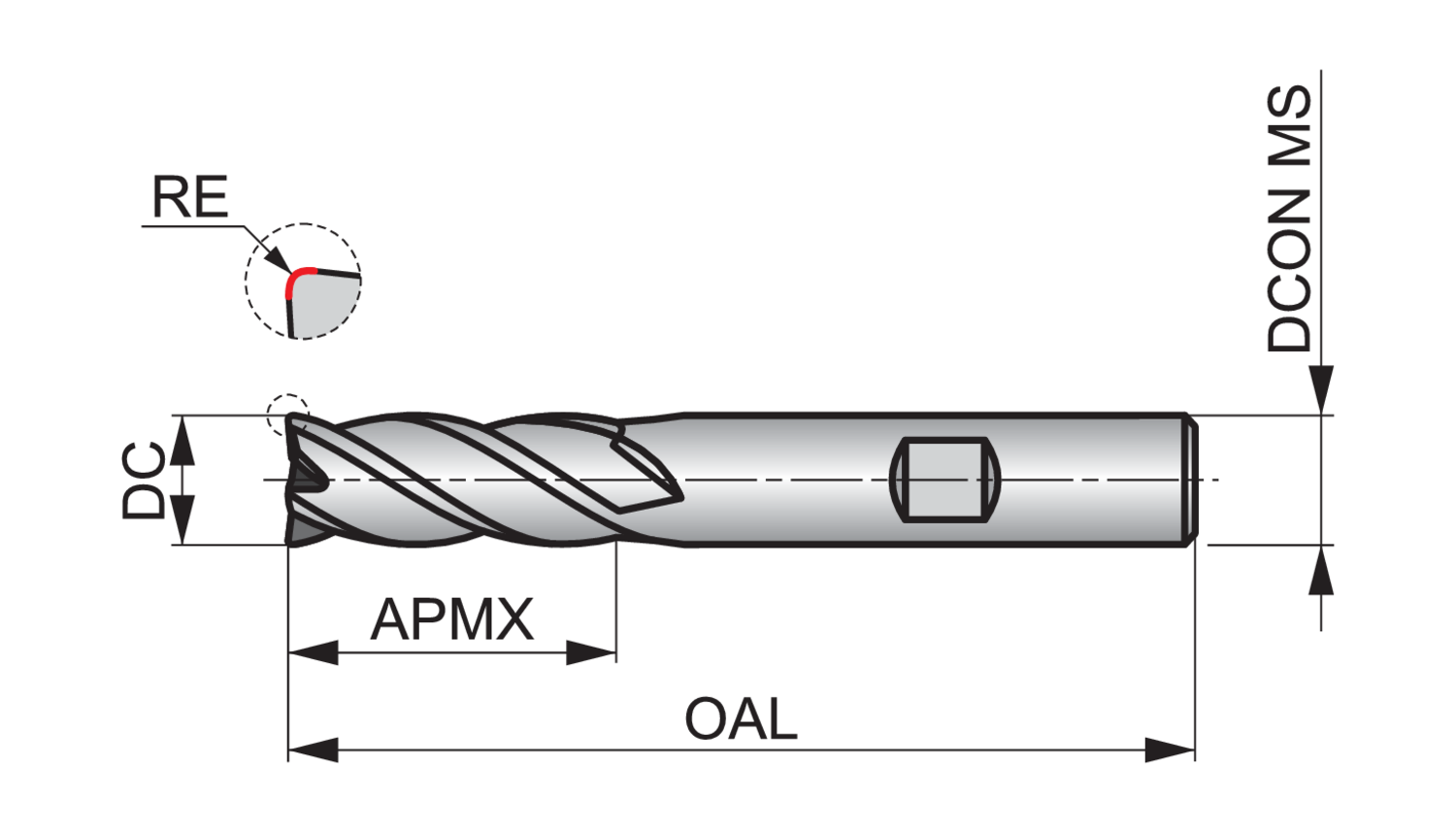

Connection diameter - fractional inch (DCON MS)
3/8
Connection diameter - inch (DCON MS)
0.375
Connection diameter - millimeter (DCON MS)
9.53
Corner radius - inch (RE)
0.015
Cut length
Medium
Cutting diameter - fractional inch (DC)
3/8
Cutting diameter - inch (DC)
0.375
Cutting diameter - millimeter (DC)
9.53
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
7/8
EDP number
7648705
Flute count (NOF)
4
Flute helix unequal
1
Material
HM
MID number
7648705
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S223HB3/8XR.015
Overall length - fractional inch (OAL)
2.1/2
Overall length - inch (OAL)
2.5
Overall length - millimeter (OAL)
63.5
Radial rake angle (GAMF)
8
Shank
Cylindrical shank DIN 6535 HB
Dormer’s S223HB 4-flute end mills with a Weldon shank have an unequal geometry, specially designed to reduce vibration and improve surface finish when used in CNC machines.
To ensure great performance and a long tool life, the tools are manufactured from premium carbide, whilst the aluminium titanium nitride coating will guarantee a clean and accurate finish by preventing workpiece material from sticking to the cutting surfaces of the tool.
The medium length flute design provides good rigidity for milling standard slots and profiling, and the tools can be used for plunging, ramping and profile milling in stainless steels, cast iron and steels
