Dormer S22718.0 6706826 Finishing End Mill 18.00 mm
MODEL 6706826
$444.19 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlTiN
Coating property (CTP)
1

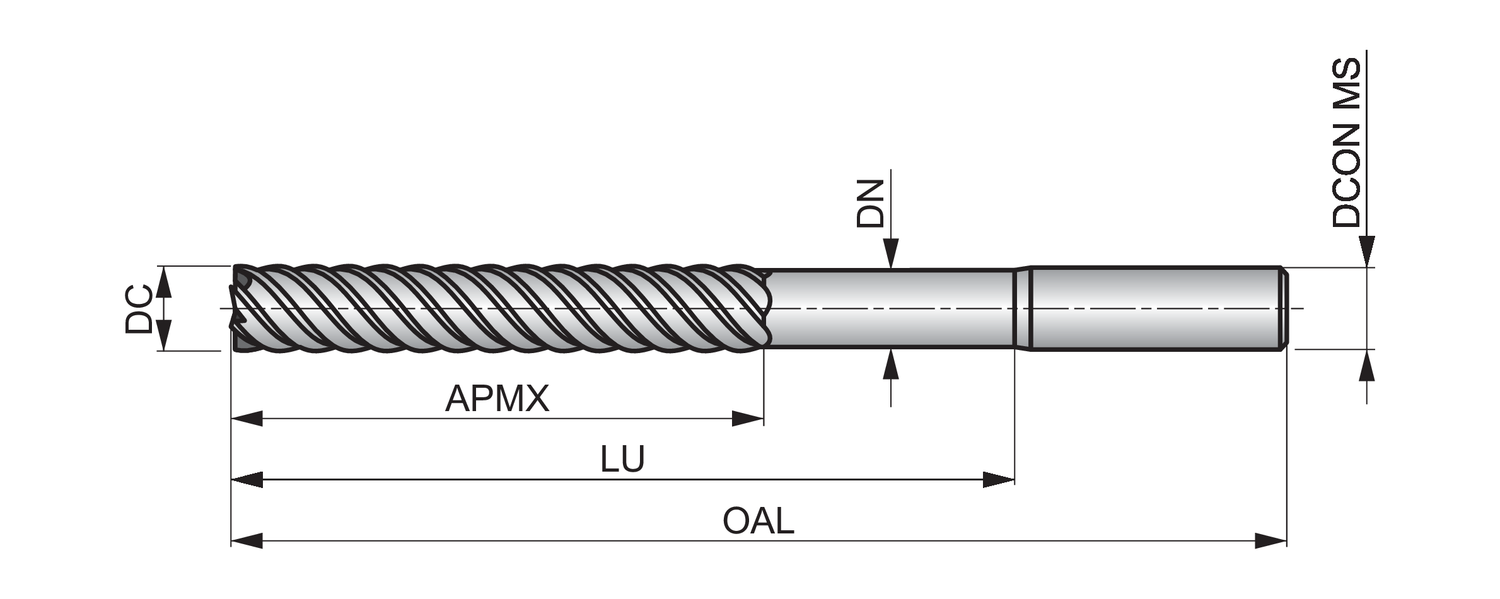

Connection diameter - inch (DCON MS)
0.7087
Connection diameter - millimeter (DCON MS)
18
Cut length
Extra long
Cutting diameter - inch (DC)
0.7087
Cutting diameter - millimeter (DC)
18
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
2.9528
Depth of cut maximum - millimeter (APMX)
75
EDP number
46706826
Flute count (NOF)
8
Flute helix angle (FHA)
50
Material
HM
Material application
M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706826
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.6693
Neck diameter - millimeter (DN)
17
Ordering code ANSI
S22718.0
Overall length - inch (OAL)
5.9055
Overall length - millimeter (OAL)
150
Peripheral effective cutting edge count (ZEFP)
8
Radial rake angle (GAMF)
3
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
110
S227 milling cutters are manufactured from premium grade carbide for superior performance and longer tool life.
They are designed specifically for finishing in difficult to machine materials such as heat resistant alloys and have an aluminium titanium nitride coating which improves performance when milling those materials and also increases the life of the tool.
With a 50 degree helix for high performance profiling on CNC machines and an extra long multi-flute geometry, S227 milling cutters are designed to provide high rigidity for finishing of deep profiles
