Dormer S6126.0 6706612 End Mill 6.00 mm
MODEL 6706612
$115.75 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Diamond
Coating property (CTP)
1

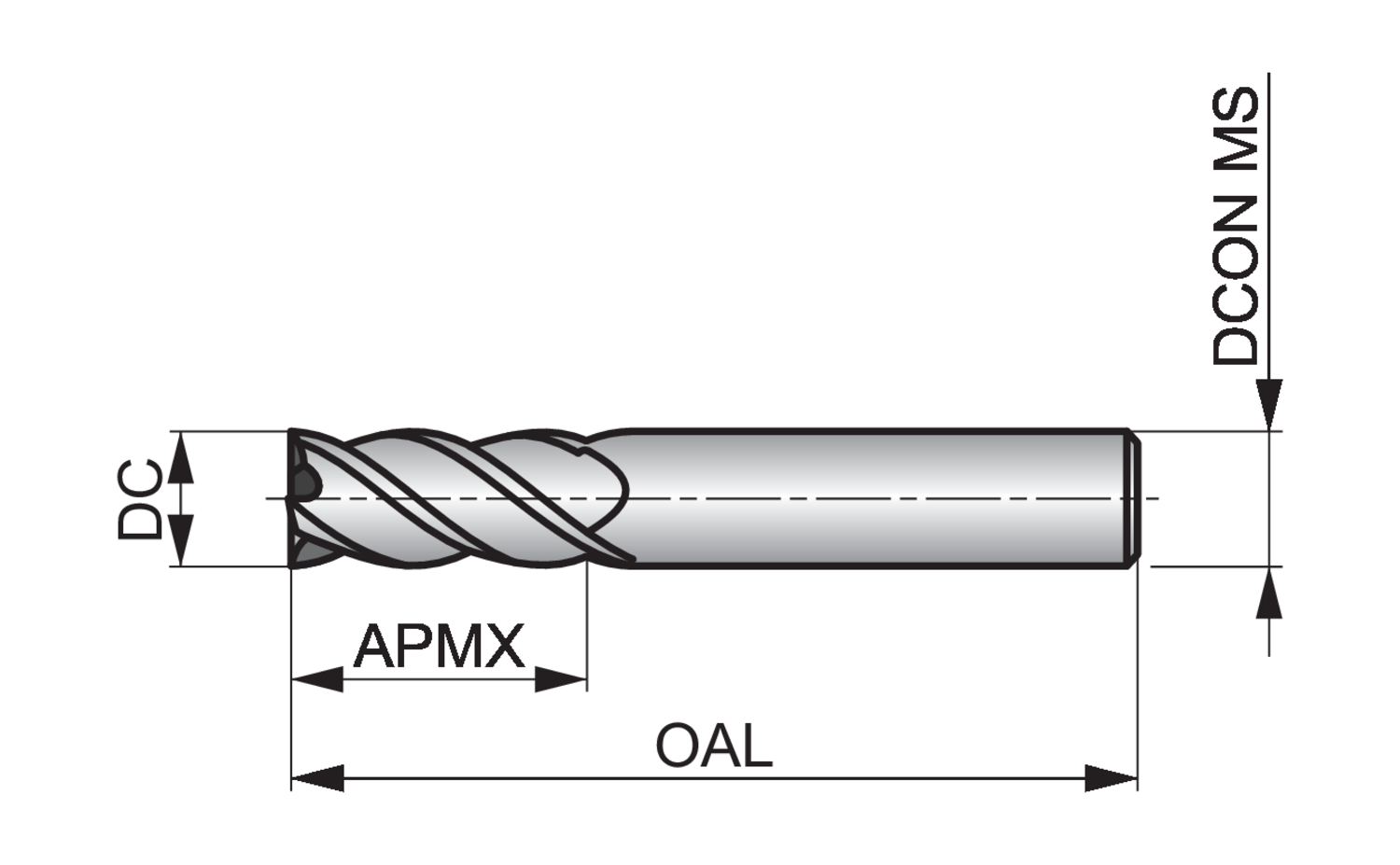

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Cut length
Short
Cutting diameter - inch (DC)
0.2362
Cutting diameter - millimeter (DC)
6
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.7874
Depth of cut maximum - millimeter (APMX)
20
EDP number
46706612
Flute count (NOF)
4
Flute helix angle (FHA)
40
Material
HM
Material application
N - Non-ferrous metals
MID number
6706612
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S6126.0
Overall length - inch (OAL)
2.3622
Overall length - millimeter (OAL)
60
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 6535 HA
S612 4-flute milling cutters have a diamond coating for increased service life and improved performance when milling highly abrasive materials and are designed specifically for milling abrasive materials such as granite.
The premium carbide material used in manufacture guarantees great performance and longer tool life.
High rigidity is achieved with the medium flute design so the tools are great for standard profile milling, and the 40 degree helix facilitates high performance profiling using CNC machines
