Dormer S6504.0XD4 8030285 End Mill
MODEL 8030285
$37.72 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

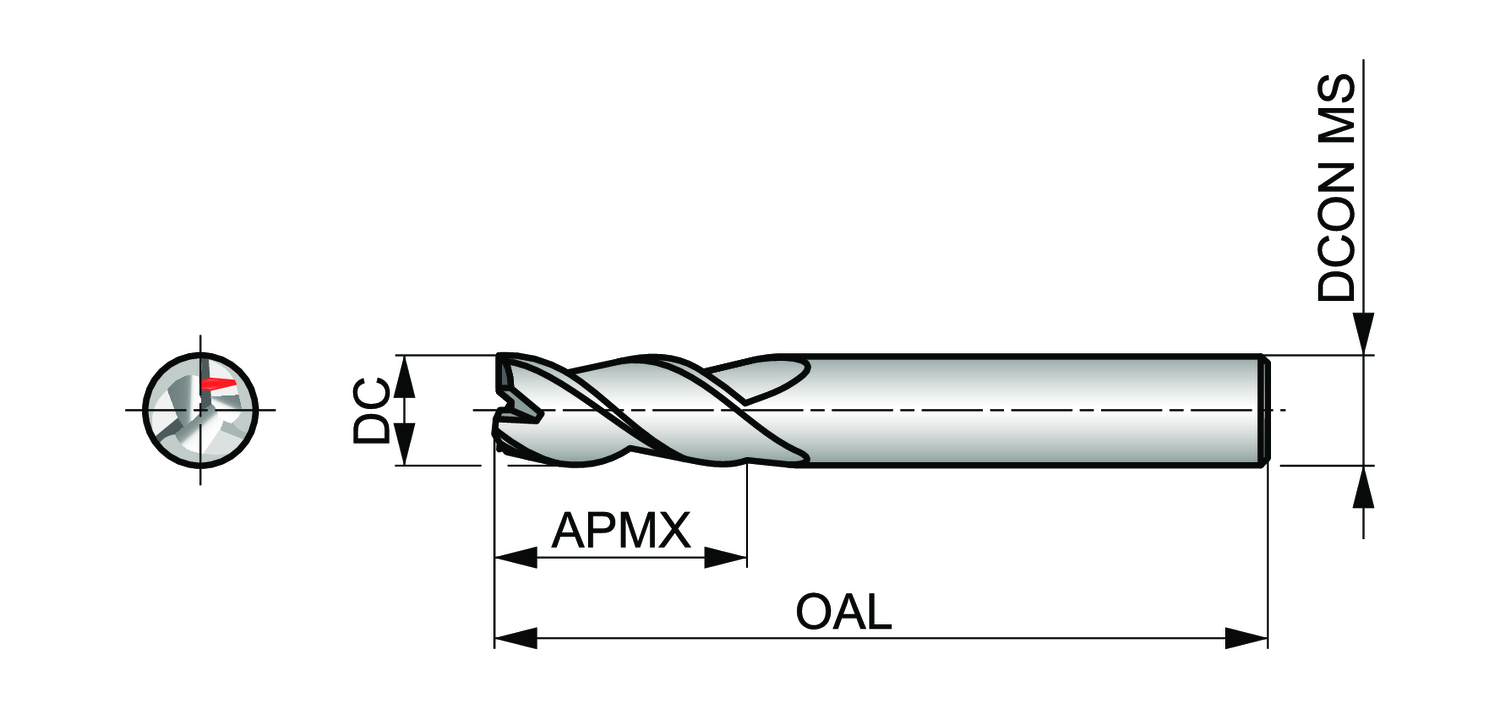

Connection diameter - inch (DCON MS)
0.1575
Connection diameter - millimeter (DCON MS)
4
Cut length
Short
Cutting diameter - inch (DC)
0.1575
Cutting diameter - millimeter (DC)
4
Cutting diameter tolerance class (TCDC)
h9
Cutting pitch differential (CPDF)
1
Depth of cut maximum - inch (APMX)
0.4724
Depth of cut maximum - millimeter (APMX)
12
EDP number
8030285
Flute count (NOF)
3
Flute helix angle (FHA)
40
Material application
N - Non-ferrous metals
Material code (BMC)
HM
MID number
8030285
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Ordering code ANSI
S6504.0XD4
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Radial rake angle (GAMF)
13
Shank
Cylindrical shank DIN 6535 HA
With a bright finish to reduce friction and prevent workpiece material from sticking to the cutting edges of the tool, a cleaner and more accurate finish will be achieved with S650 3-flute milling cutters.
They have a differential pitch to reduce chatter and vibration for better tool life and improved surface finish, and positive geometry, giving you a smooth cutting action for high performance when milling non-ferrous materials.
For improved metal removal rate at higher cutting speeds, S650 milling cutters have a 3-flute design which is very versatile and is capable of slotting, plunging, ramping and contouring
