Dormer S814HA16.0 5983573 End Mill N 6527 L 16.00 mm
MODEL 5983573
$202.71 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 6527 L
Coating
AlCrN
Coating property (CTP)
1

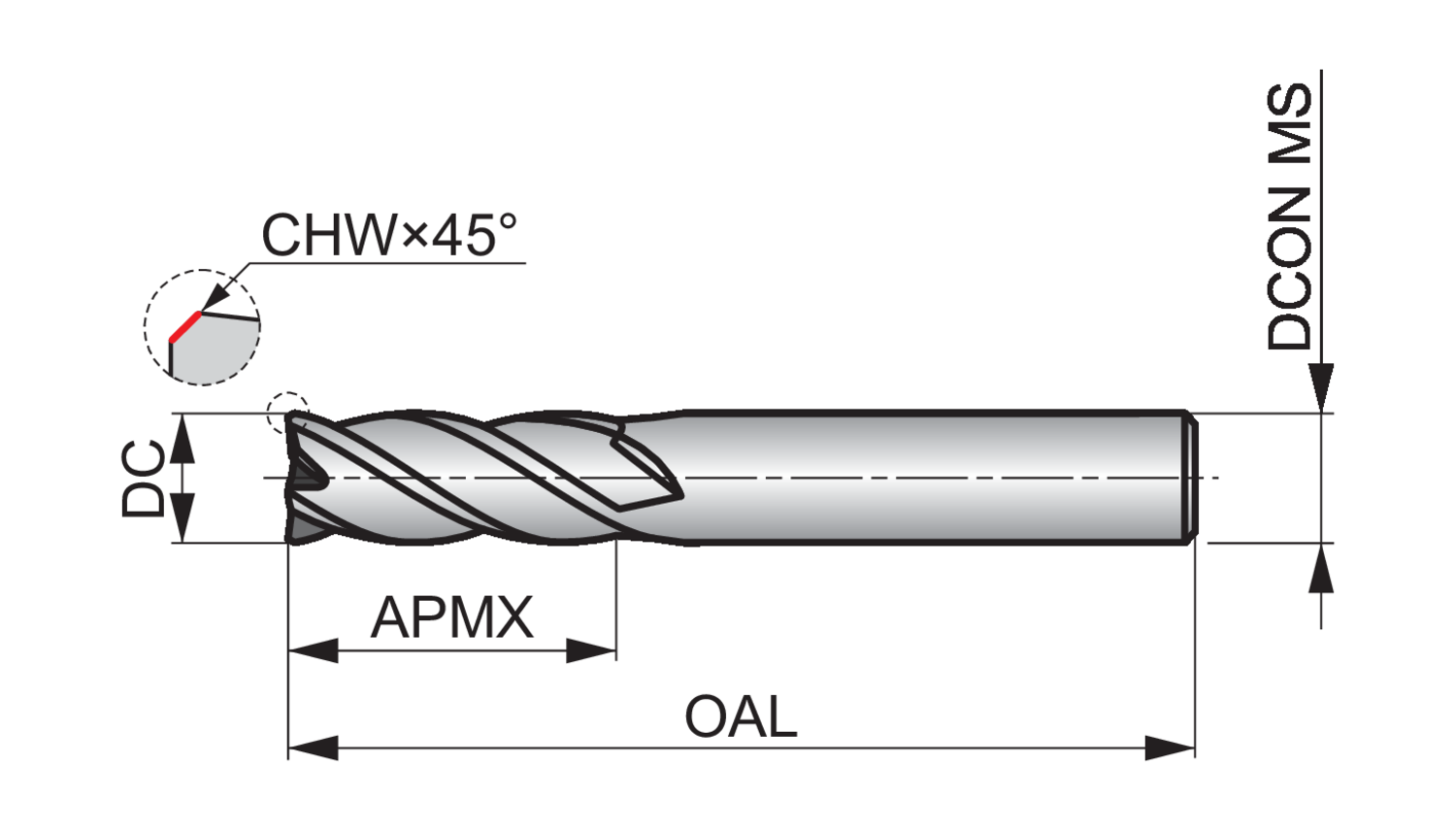

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Corner chamfer width - millimeter (CHW)
0.2
Cut length
Short
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
Cutting diameter tolerance class (TCDC)
h10
Depth of cut maximum - inch (APMX)
1.2598
Depth of cut maximum - millimeter (APMX)
32
EDP number
642580
Flute count (NOF)
4
Flute helix angle (FHA)
34
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5983573
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S814HA16.0
Overall length - inch (OAL)
3.622
Overall length - millimeter (OAL)
92
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
9
Shank
Cylindrical shank DIN 6535 HA
S814HA 4-flute milling cutters are manufactured from premium carbide for superior performance and extended tool life.
The medium length flute gives good rigidity for general purpose profile milling applications, whilst the cutters are of a strong design and can be used for both slotting and profile milling.
The Alcrona coating makes the tools perfect for milling materials which are difficult to machine and further improve tool life.
S814HA 4-flute end mills are very versatile tools and can be used for plunging, ramping and profile milling in steels, stainless steels, non-ferrous material and cast iron
