Dormer B41124.0 5987194 Machine Reamer Extremely Unequal Spacing 8FL 24.00 mm
MODEL 5987194
$292.49 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

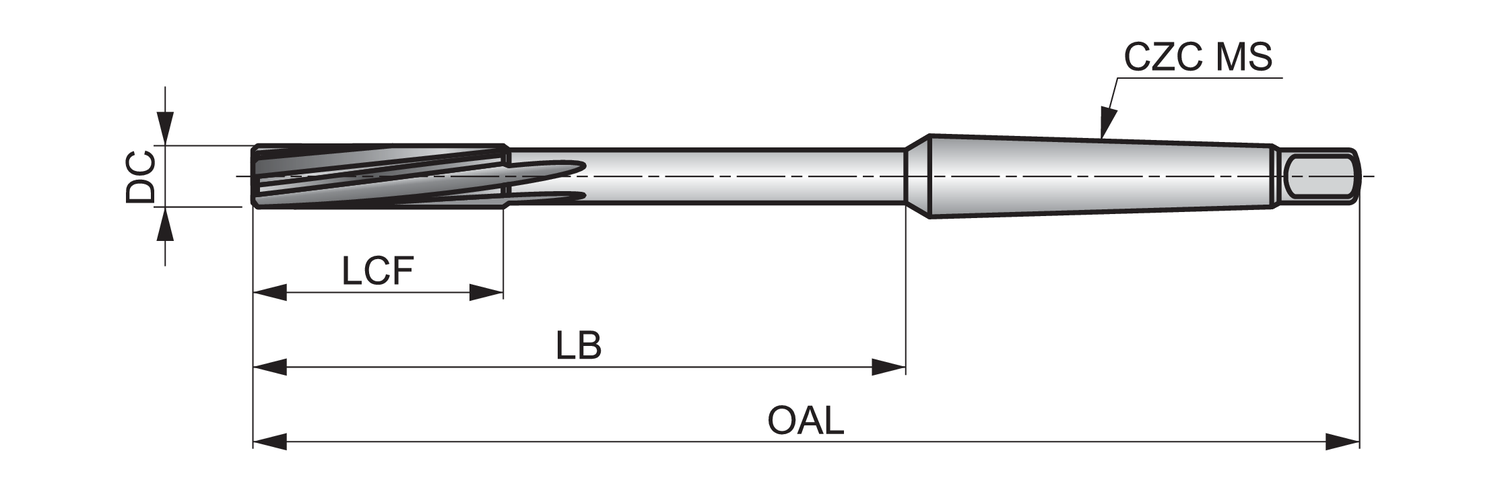

California Prop 65 warningAchievable hole tolerance (TCHA)
H7
Basic Standard
DIN 8094
Body length - millimeter (LB)
169
Coating
Bright
Connection size code machine side (CZC MS)
MK 3
Cutting diameter - inch (DC)
0.9449
Cutting diameter - millimeter (DC)
24
EDP number
144381
Flute count (NOF)
8
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
68
Material
HM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5987194
Ordering code ANSI
B41124.0
Overall length - inch (OAL)
10.5512
Overall length - millimeter (OAL)
268
Shank
Morse Taper Shank
Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a Morse taper shank, diameter 24.00mm with an overall length of 268mm, a flute length of 68mm and 169mm reach with neck relief, according to DIN 8094 standard for reaming precise holes within H7 tolerance, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
