SPR-1201 087967 120° Spotting Drill Jobber 1 inch
MODEL SPR-1201
$167.76 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 120°
Basic Standard
Precision
Coating
Bright

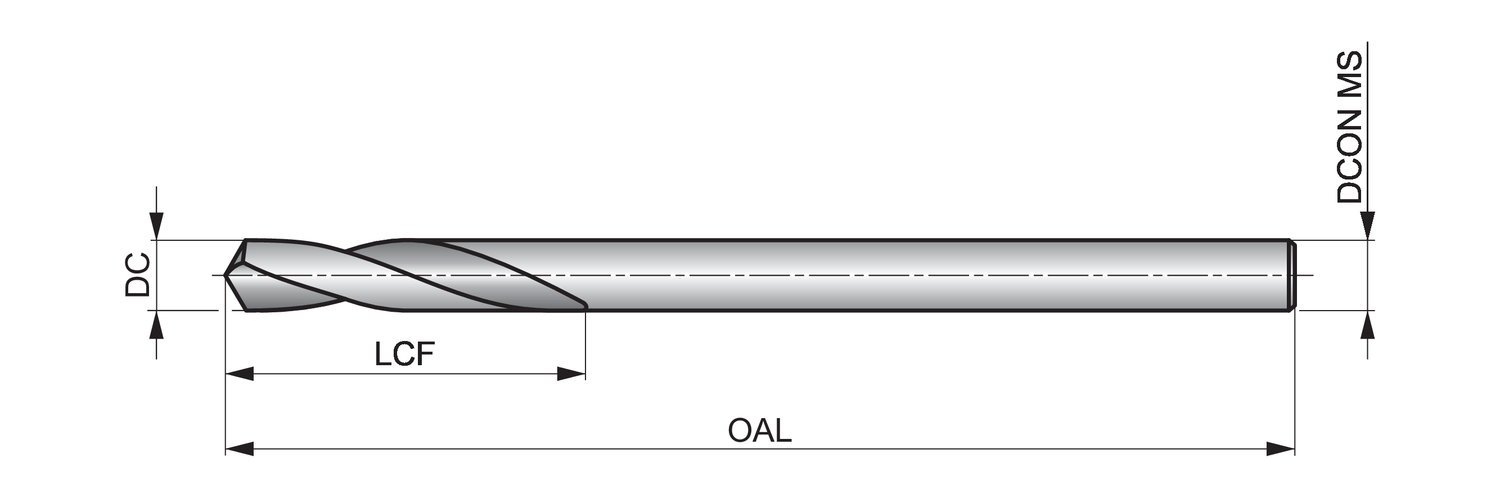

Cutting diameter - fractional inch (DC)
1"
Cutting diameter - millimeter (DC)
25.4
Cutting Diameter Inch Decimal
1
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
2.1/4
Length chip flute - inch (LCF)
2.25
Material
HSS
Overall length - fractional inch (OAL)
8"
Overall length - inch (OAL)
8
Overall length - millimeter (OAL)
203.2
Point Angle (SIG)
120
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
For drilling most common materials including steel, aluminum, cast iron and stainless steel, SPR-120 spotting drills have a 120 degree conventional point, designed for spotting holes including 120 degree chamfer, and an accurate point producing a chamfer to accommodate standard screws.
The bright finish further ensures accurate results by preventing workpiece material from sticking to the cutting edges of the tool.
