QC21PM 019313 135° Jobber Drill M
MODEL QC21PM
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$12.87 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
ANSI
Coating
Bright
Connection (shank) description
Cylindrical shank

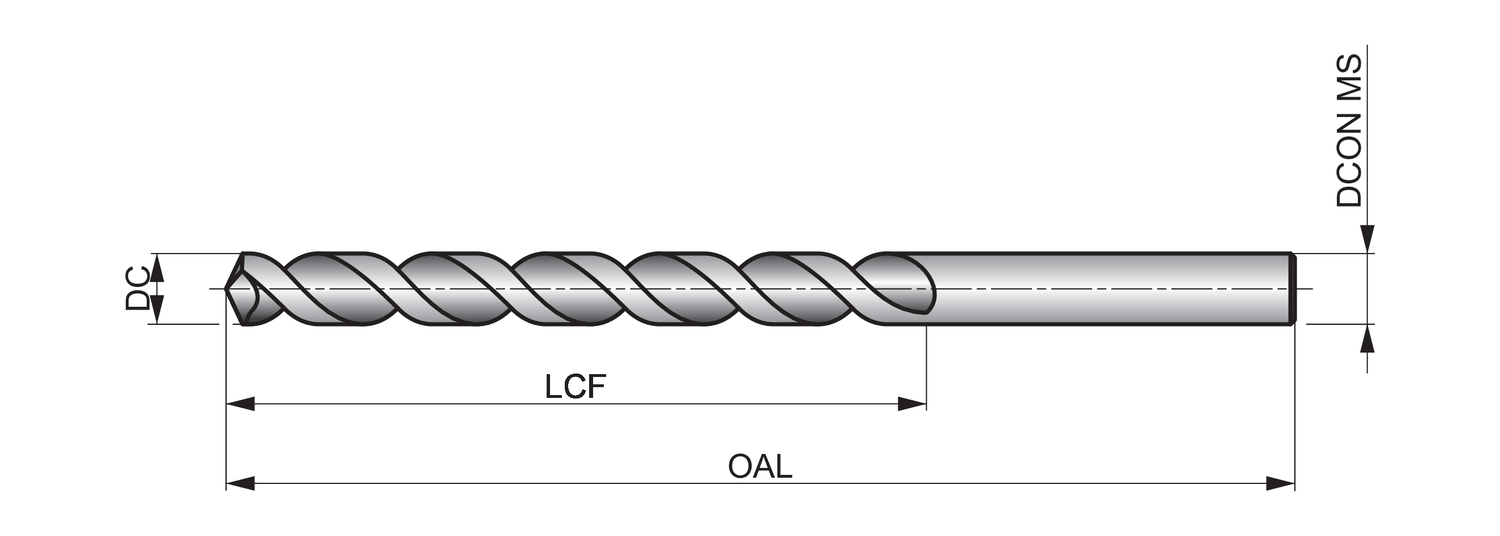

Cutting diameter - imperial letter (DC)
M
Cutting diameter - inch (DC)
0.295
Cutting diameter - millimeter (DC)
7.49
Drill Length
Jobber
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
3.1/16
Length chip flute - inch (LCF)
3.0625
Material
HSS
Overall length - fractional inch (OAL)
4.3/8
Overall length - millimeter (OAL)
111.13
Point Angle (SIG)
135
Spiral form
Quick Spiral
Surface treatement
Original surface
Usable length (ULDR)
4
Manufactured from premium High Speed Steel for drilling aluminum, steel, stainless steel and many other materials, QC21P jobber drills have a 135 degree split point to help with self-centering and reduce the push force needed, and a special parabolic flute, designed to make it possible to drill deeper holes in a single pass.
The drills are available in a wide range of fractional, letter and wire gauge sizes and have a bright finish to ensure clean and accurate holes by preventing workpiece material from sticking to the cutting edges of the tool.
| Brand | Precision Twist Drill |
| Model | M52CON19 |
