Image for Illustration purposes only. Actual product may vary
Pramet 100A10R-S45SE09F-C 6761685 Shell Milling Cutter - Face
MODEL 6761685
$752.66 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

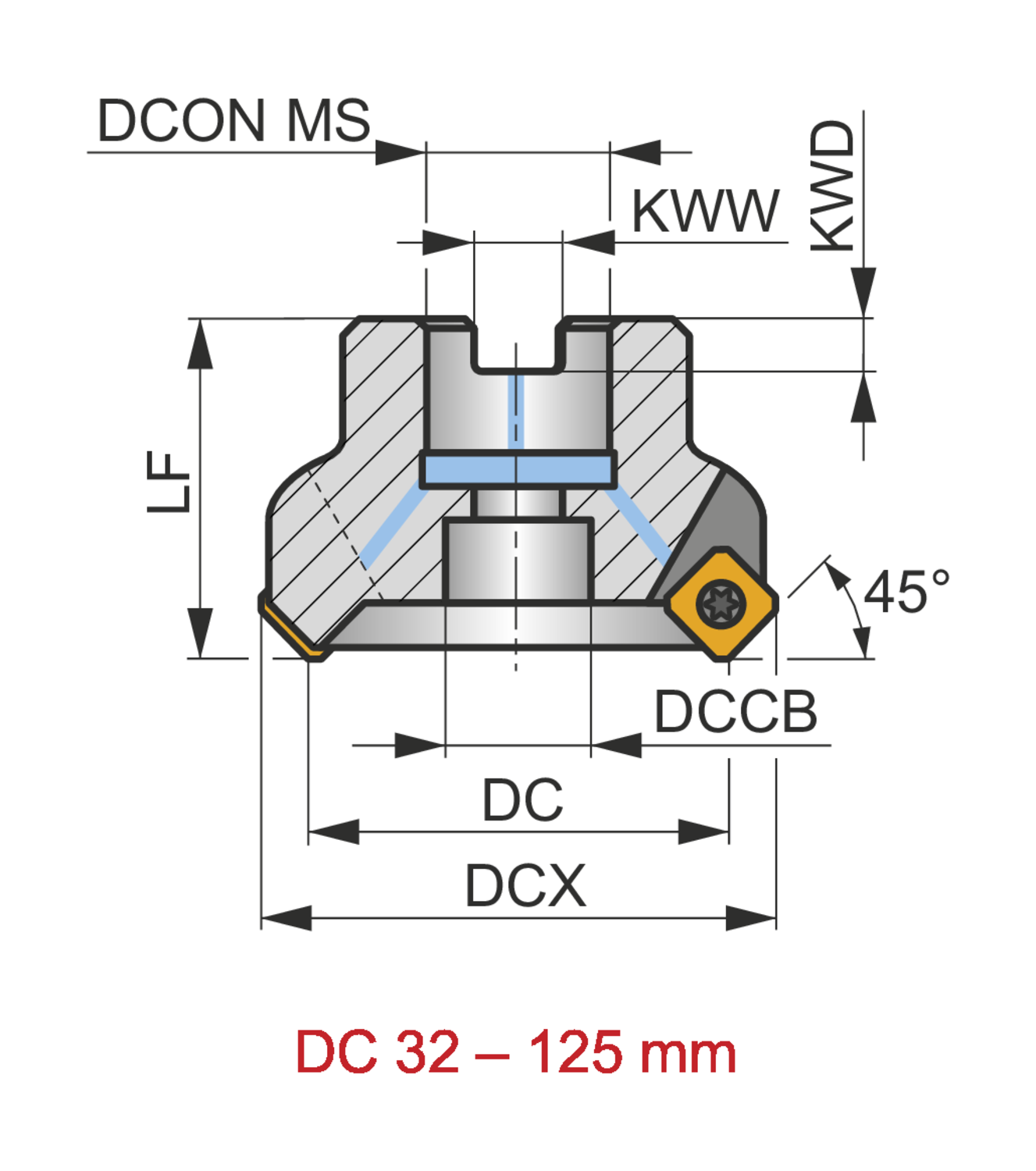

Axial rake angle (GAMP)
20
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.772
Counterbore diameter connection bore - millimeter (DCCB)
45
Cutting diameter - inch (DC)
3.937
Cutting diameter - millimeter (DC)
100
Cutting diameter maximum - inch (DCX)
4.331
Cutting diameter maximum - millimeter (DCX)
110
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Right
Insert index count (NOI)
10
Keyway depth - millimeter (KWD)
8
Keyway width - millimeter (KWW)
14.4
Peripheral effective cutting edge count (ZEFP)
10
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
10900
Shank
Shell mill DIN 8030 A
Face mill with positve/negative geometry which utilises 10 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 100 to maximum 110.0mm with 45° approach angle and 32mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 4.5mm
