Dormer S6626.0XR0.5 8030317 Corner Radius End Mill
MODEL 8030317
$45.12 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

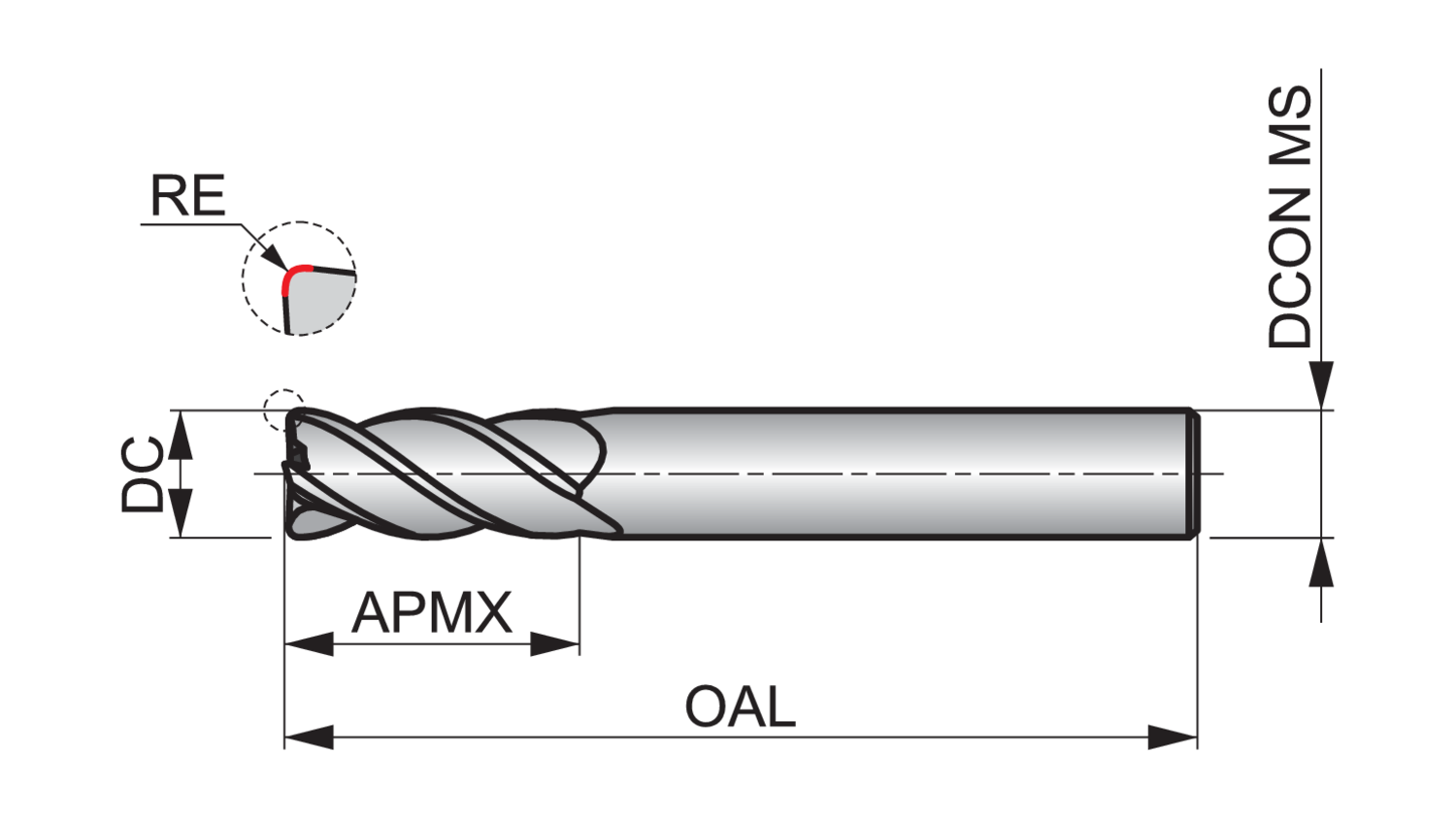

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Corner radius - inch (RE)
0.0197
Corner radius - millimeter (RE)
0.5
Cut length
Short
Cutting diameter - inch (DC)
0.2362
Cutting diameter - millimeter (DC)
6
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.6299
Depth of cut maximum - millimeter (APMX)
16
EDP number
8030317
Flute count (NOF)
4
Flute helix angle (FHA)
40
Material application
N - Non-ferrous metals
Material code (BMC)
HM
MID number
8030317
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Ordering code ANSI
S6626.0XR0.5
Overall length - inch (OAL)
2.2441
Overall length - millimeter (OAL)
57
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 6535 HA
With a corner radius to reduce chipping and improve tool life, S622 milling cutters from Dormer have a positive geometry giving smooth cutting for high performance milling of non-ferrous materials.
They are capable of slotting, ramping, plunging and contouring, and will give clean and accurate results thanks to the bright finish which prevents workpiece material from sticking to the cutting edges of the tool and also reduces friction.
S662 cutters come with a differential pitch to reduce chatter and vibrations for improved surface finish and tool life
